Brand: Cepai
Types Of: Ball Valves
Support Customization: Oem
Power: Pneumatic
Flow Medium: Acid
Structure: Ball
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

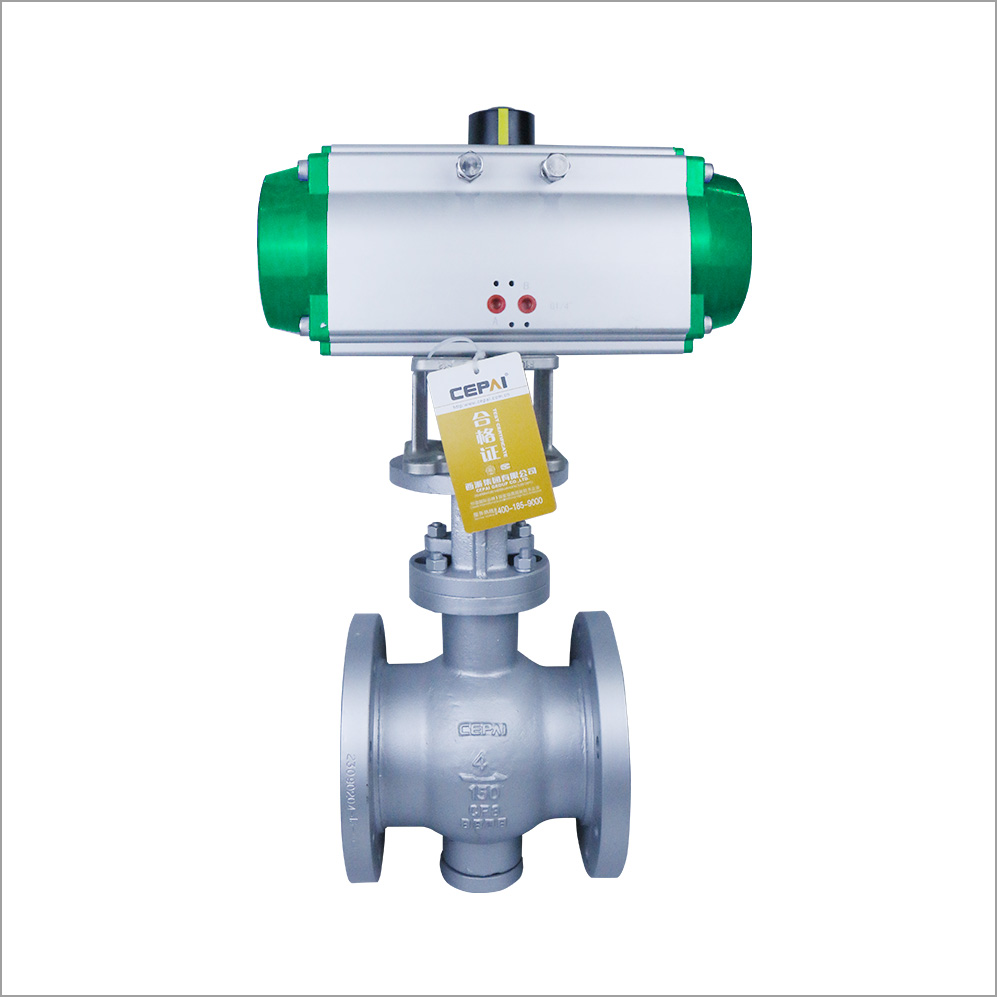

Specification introduction:
Size range: The size range of pneumatic V-type ball valves is usually from 1/2 inch to 24 inches, and the appropriate size can be selected according to actual needs.
Rated pressure: According to different working environments and use requirements, the rated pressure of pneumatic V-type ball valves is generally between 150 pounds/square inch (PN10) and 600 pounds/square inch (PN40).
Body material: The common body material is stainless steel, carbon steel, cast iron, etc., can be selected according to the characteristics of the medium and the working environment.
Sealing structure: The sealing structure of the pneumatic V-type ball valve usually uses PTFE sealing rings or metal sealing rings to ensure good sealing performance of the valve.
Our company's main products are also Gate Valve, Welhead, Ball Valve, Flowmeter,Globe Valve.
| Ball core form: | full-bore V-shaped |
| Nominal diameter: | DN15-450mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection type: | flange type. Clamp type |
| Valve body material: | WCB, WC6, WC9, LCB, CF8, CF8M, etc. |
| Filling: | PTFE, flexible graphite |
| Valve core form: | metal seal, soft seal |
| Flow characteristics: | equal percentage |
| Internal materials: | 304+PTFE, 316+PTFE, 304, 316, 304L, 316L |
| Model: | Piston actuator |
| Air supply pressure: | 400~700kPa |
| Air source interface: | G1/8″, G1/4″, G3/8″, G1/2″ |
| Ambient temperature: | -30～+70℃ |
| Form of action: | single action, double action |
| Leakage: Metal Seal: | Meets ANSI B16.104 Level IV |
| Non-metallic valve seat: | Meets ANSI B16.104 Level VI |
| Accessories (configured upon request) | Positioner, filter pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, pneumatic accelerator, locking valve, etc. |
Product Categories : Pneumatic Ball Valve
