Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Pneumatic
Flow Medium: Gas, Water, Oil
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

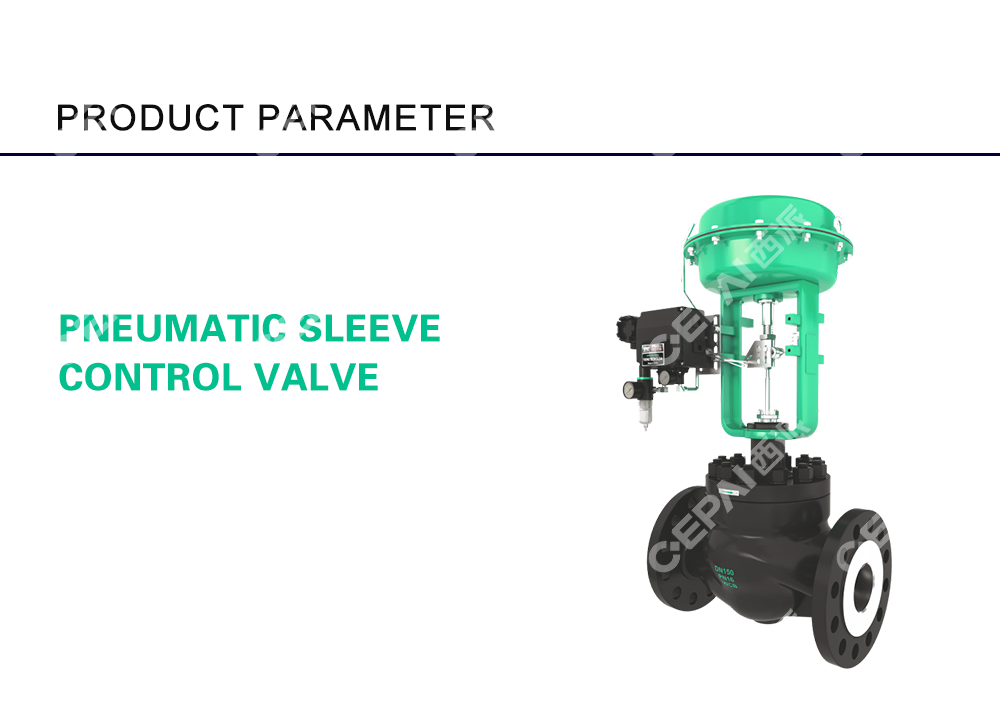

Pneumatic sleeve regulating valve is a valve that uses pneumatic power to control fluid flow and pressure. It consists of valve body, sleeve, valve core, piston, spring
and pneumatic actuator. This valve adjusts the position of the valve core and changes the channel area of the fluid through the valve, thereby adjusting the flow and pressure.
Pneumatic sleeve regulating valve has the following characteristics:
1. Precise control: The design of the valve core and sleeve enables the valve to accurately control the flow and pressure of fluid to meet the requirements of different processes.
2. Quick response: Due to the use of pneumatic actuators, the pneumatic sleeve regulating valve has the characteristics of quick response and can quickly adjust
the flow and pressure of the fluid.
3. High reliability: The valve is made of high-quality materials, has good corrosion resistance and wear resistance, and can operate stably for a long time in harsh working environments.
4. Easy maintenance: The valve has a simple structure and is easy to disassemble and repair, which can reduce maintenance time and costs.
5. Widely used: Pneumatic sleeve regulating valves are suitable for various industrial fields, such as chemical industry, petroleum, electric power, metallurgy, etc.,
and can be used to regulate the flow and pressure of liquids, gases and steam.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | Straight-through double-seat Ball Valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve, speed increaser, position keeping valve, etc. |
