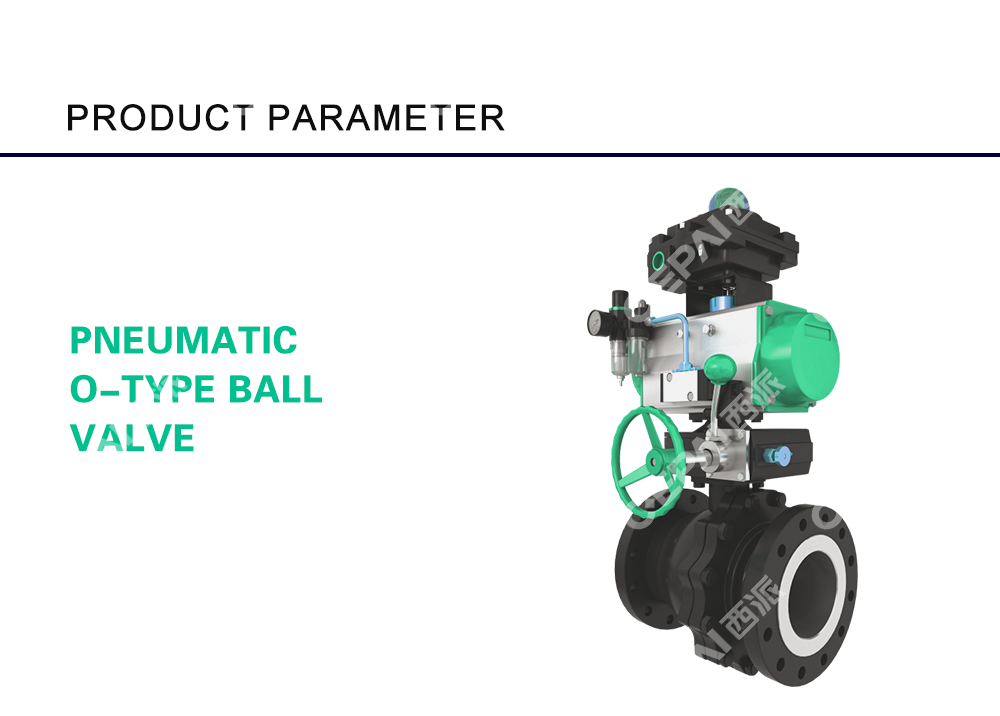

Compact Pneumatic O-type ball valve

Name: O-type ball valve
Uploaded: 2024-12-04T08:05:22+08:00
Description: Pneumatic O-type ball valve is a valve that uses a pneumatic actuator to control the rotation of a

Get Latest Price

Size:

1/2" 150LB
3/4" 150LB
1" 150LB
1-1/4" 150LB
1/1-2" 150LB
2" 150LB
2-1/2" 150LB
3" 150LB
4" 150LB
5" 150LB
6" 150LB
8" 150LB

Material:

304 stainless steel

pressure:

Low Pressure

option:

Please contact customer service for details

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Types Of: Ball Valves

Support Customization: Oem

Place Of Origin: China

Medium Temperature: High Temperature, Low Temperature, Medium Temperature, Normal Temperature

Power: Pneumatic

Flow Medium: Gas, Water, Oil

Structure: Ball

Supply Ability & Additional Information

Packaging: BOX

Transportation: Ocean,Land,Air,Express,Others

Port: Shanghai,Ningbo,Huaian

Payment Type: T/T,L/C

Incoterm: FOB,CFR,EXW,CIF

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: BOX

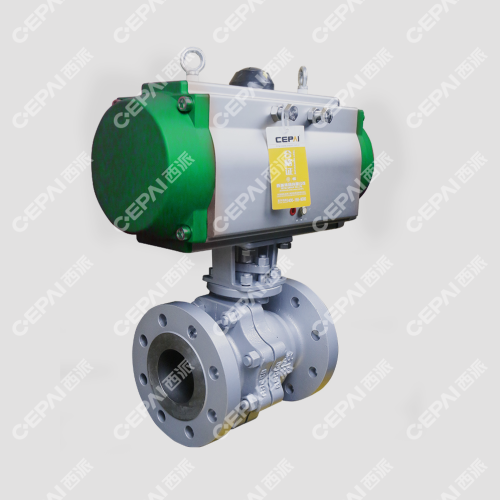

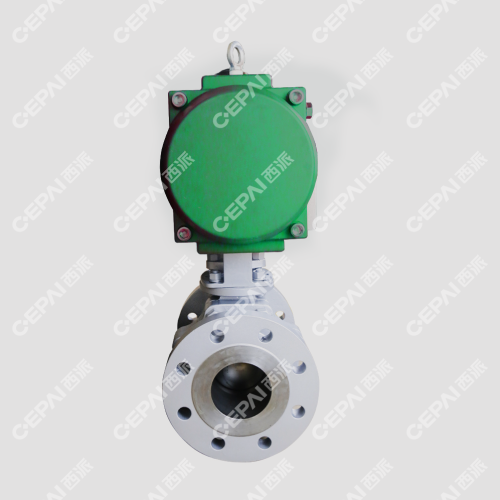

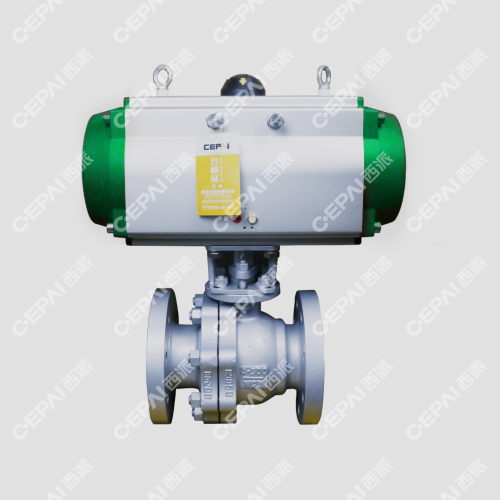

Pneumatic O-Type Ball Valve is a valve that uses a pneumatic actuator to control the rotation of a ball.

It has the following product description characteristics:

1. Simple structure: The pneumatic O-type Ball Valve is composed of a ball, a valve seat, a valve stem and a pneumatic actuator. It has a compact structure,

small size and light weight.

2. Fast switching: Due to the role of the pneumatic actuator, the pneumatic O-type ball valve has a fast switching speed and can quickly achieve switching

operations.

3. Good sealing: O-ring is used between the ball and the valve seat, which can effectively prevent medium leakage and has good sealing performance.

4. Strong corrosion resistance: Pneumatic O-type ball valves are usually made of corrosion-resistant materials and can adapt to the use environment of

various corrosive media.

In short, the pneumatic O-type ball valve has the product description characteristics of simple structure, fast opening and closing, good sealing, strong corrosion resistance, long service life, convenient operation and wide application range, and is a commonly used valve product.Our company’s main products include

Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

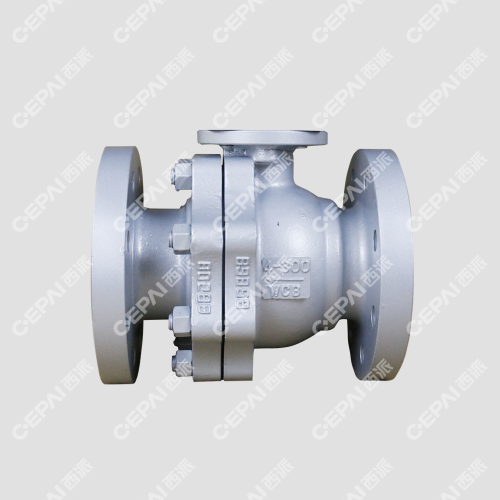

Valve Body

Ball core form:	full diameter O-shaped ball
Nominal diameter:	DN15-450mm
Nominal pressure:	PN16, 40, 64; ANSI 150, 300, 600
Connection type:	flange type
Body material:	WCB, CF8, CF8M, etc
Packing:	polytetrafluoroethylene PTFE, flexible graphite

Valve inner assembly

Spool form:	metal seal, soft seal
Valve ball material:	304, 316, 304L, 316L, etc
Valve seat material:	PTFE, RPTFE, PEEK, PPL, 304, 316, etc

Executive mechanism

Model:	Piston actuator
Gas supply pressure:	400 ~ 700kPa
Air source interface:	G1/8 ", G1/4 ", G3/8 ", G1/2"
Ambient temperature:	-30 ~ +70℃
Action form:	single action, double action
