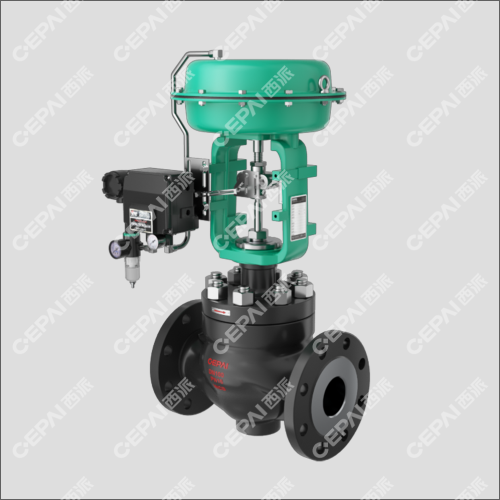

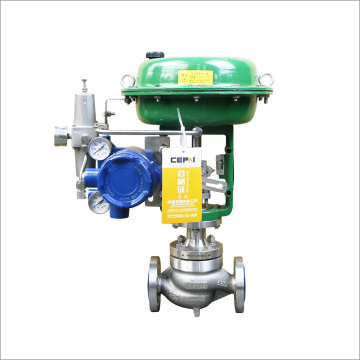

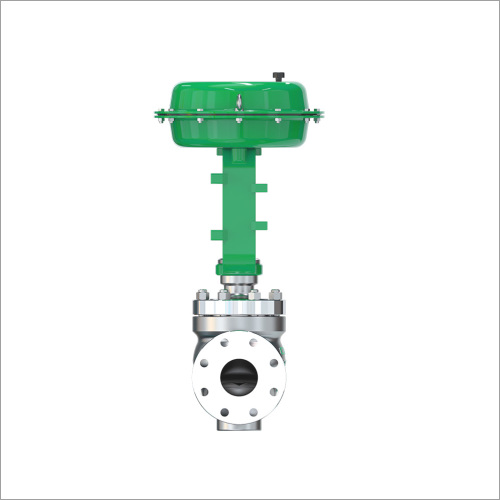

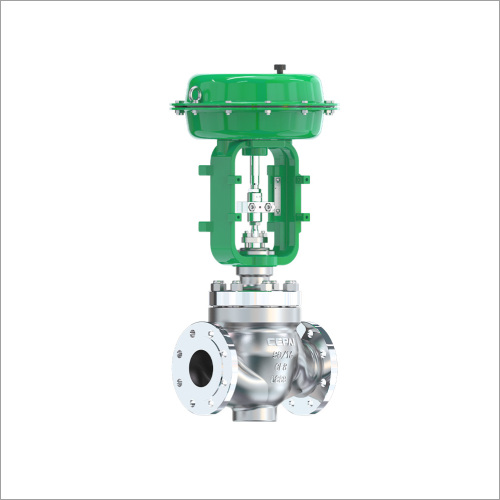

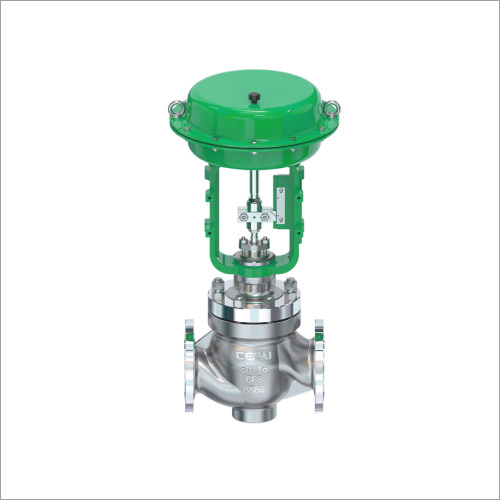

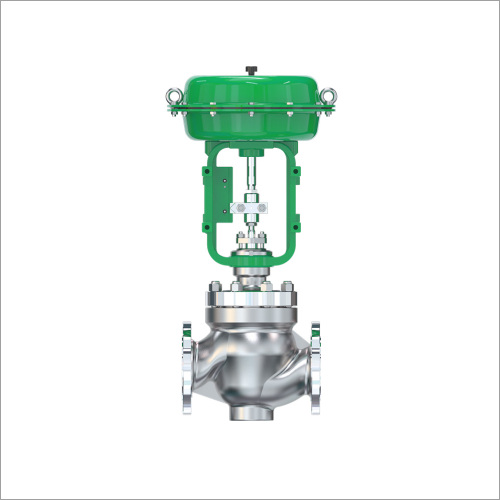

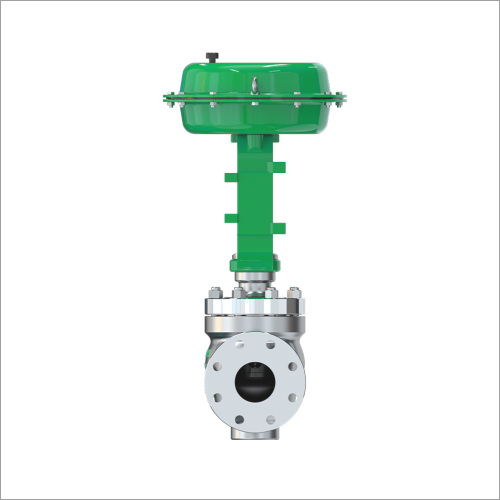

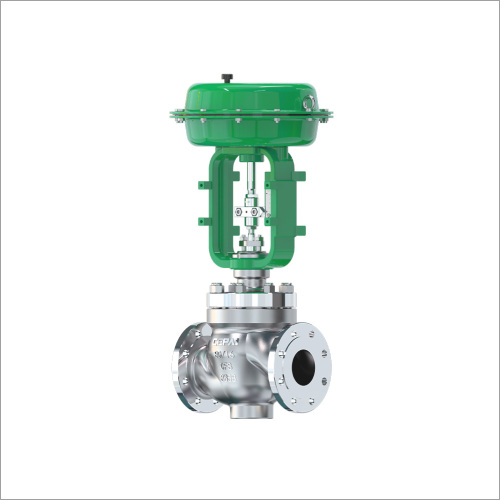

Safe and Reliable Pneumatic Single Seat Control Valve

Name: single-seat control valve
Uploaded: 2024-12-04T08:11:34+08:00
Description: Pneumatic single-seat control valve is a control valve widely used in industrial automation control systems. It uses

Get Latest Price

Size:

1/2" 150LB
3/4" 150LB
1" 150LB
1-1/4" 150LB
1-1/2" 150LB
2" 150LB
2-1/2" 150LB
3" 150LB
4" 150LB
5" 150LB
6" 150LB
8" 150LB
10" 150LB
12" 150LB
14" 150LB

Material:

304 stainless steel

pressure:

Low Pressure

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: 5610

Brand: Cepai

Types Of: Globe Valves

Support Customization: Oem

Place Of Origin: China

Medium Temperature: Normal Temperature

Power: Pneumatic

Flow Medium: Gas, Water, Oil

Structure: Control

Supply Ability & Additional Information

Packaging: Box

Transportation: Ocean,Land,Air,Express,others

Port: Shanghai,Ningbo,Huaian

Payment Type: L/C,T/T,D/P

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Box

Pneumatic single-seat control valve is a control valve widely used in industrial automation control systems. It uses the pressure of the air source to control the position of the valve disc in the valve body through a pneumatic actuator, thereby regulating the flow and pressure of the medium.

The main features of pneumatic single-seat control valve include the following aspects:

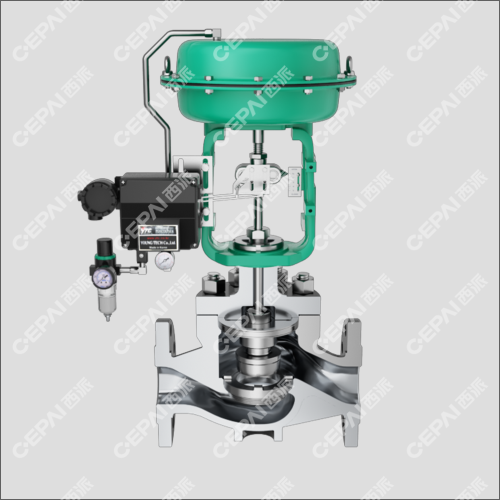

1. Simple structure: The pneumatic single-seat control valve is composed of a valve body, a valve disc, a valve seat and a pneumatic actuator. It has a simple and compact structure and is easy to install and maintain.

2. Quick response: The pneumatic actuator can quickly respond to the control signal to achieve rapid opening and closing of the valve disc, thereby achieving rapid adjustment of the medium flow and pressure.

3. High adjustment accuracy: The pneumatic single-seat control valve adopts precise valve disc and valve seat design, which can achieve precise adjustment of medium flow and pressure and meet the accuracy requirements of industrial automation control systems.

4. Strong corrosion resistance: The valve body, valve disc and valve seat of the pneumatic single-seat control valve are usually made of corrosion-resistant materials, which can adapt to the control requirements of various corrosive media.

5. High reliability: The pneumatic single-seat control valve adopts a reliable pneumatic actuator, which has good sealing performance and stability and can work stably for a long time.

Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

VALVE BODY

Type	straight single seat Ball Valve
Nominal diameter	DN15-DN400mm
Nominal pressure	PN16, 40, 64, ANSI150, 300, 600;
Connection form:	Flange type
Valve body material:	WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc.
Valve cover form:	Standard type (P): -17-+230℃
Gland type:	Bolt pressing type
Filling:	PTFE V-shaped packing, PTFE asbestos and flexible graphite

Valve inner assembly

Spool form:	upper guide single seat plunger spool
Adjustment characteristics:	equal percentage, linear, fast opening
Internal parts materials:	304, 304 surfacing STL, 316, 316 surfacing STL, 316L, 17-4PH, etc

Executive mechanism

Pneumatic actuator
Model:	Film type
Film material:	ethylene propylene rubber sandwiched nylon
Spring range:	20-100KPa, 40-200KPa, 80-240KPa
Gas supply pressure:	140KPa, 160KPa, 280KPa, 400KPa
Air source connector:	Rc1/4, Rc3/8
Ambient temperature:	-30 ~ +70℃
Action form:	gas open (reaction), gas close (positive action)
Note：	① This type of large diameter or high pressure difference regulating valve can also be equipped with straight stroke piston actuators.
	② If the ambient temperature is lower than -30 ° C, please contact the western technical personnel.
