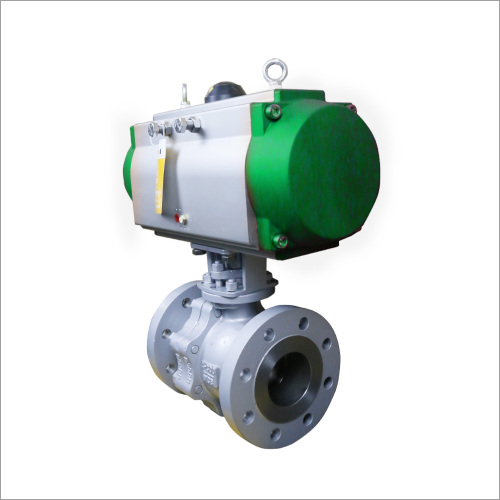

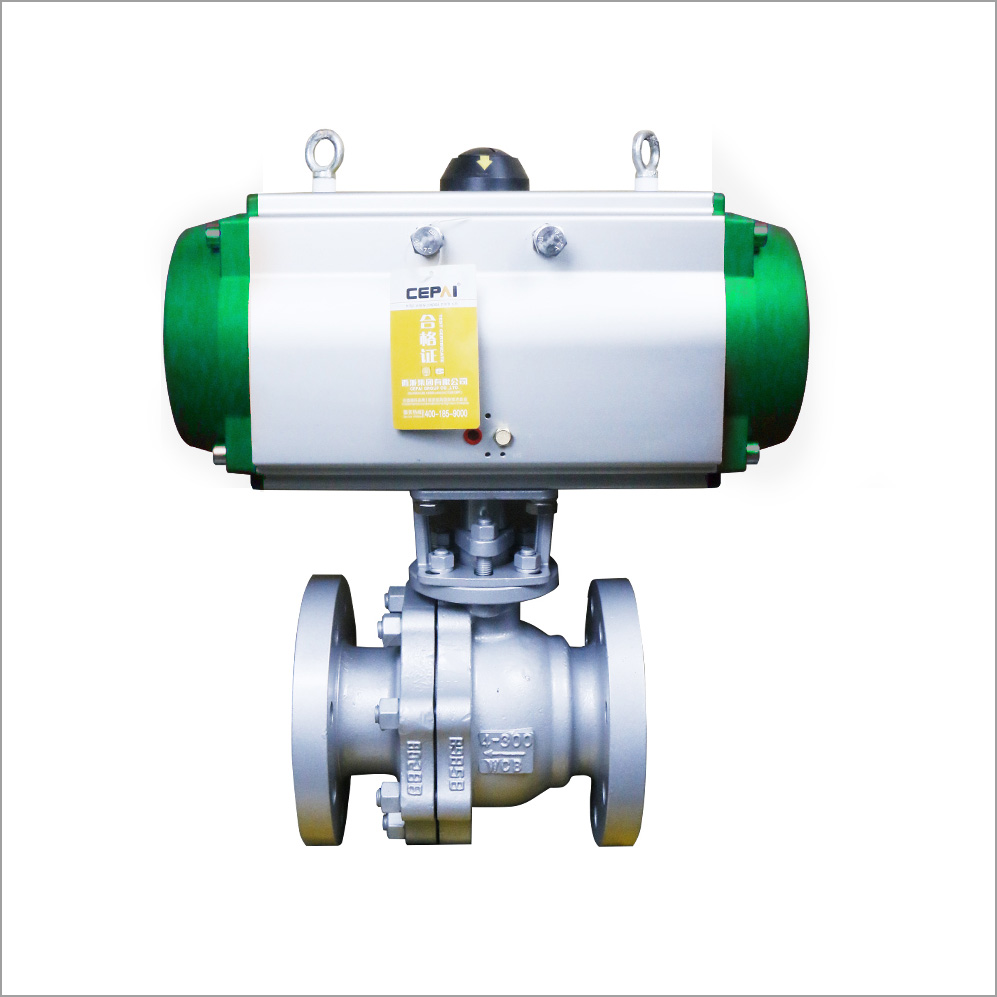

High pressure capacity: High pressure pneumatic O-Type Ball Valve can withstand high pressure, generally can reach more than 1000PSI.
Corrosion resistance: The body material is usually made of stainless steel or special alloy material, which has good corrosion resistance and is suitable for corrosive media.
Reliable sealing: The Ball Valve adopts O-type sealing ring, which has good sealing performance to ensure that the fluid medium does not leak.
Simple structure: high-pressure pneumatic O-type ball valve has simple structure, easy maintenance and flexible operation.
Our company's main products are Gate Valve, Welhead, Ball Valve, Flowmeter,Globe Valve.

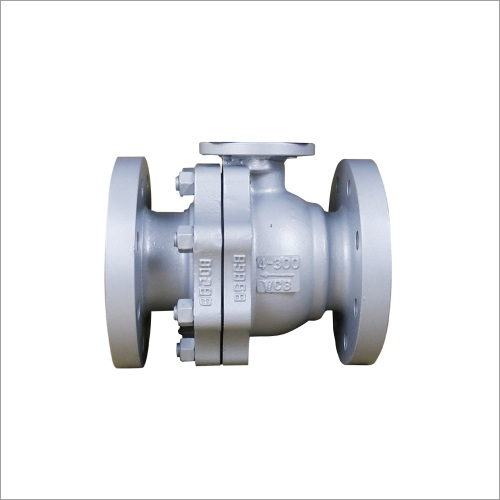

Valve Body
| Ball core form: | full diameter O-shaped ball |
| Nominal diameter: | DN15-450mm |
| Nominal pressure: | PN16, 40, 64; ANSI 150, 300, 600 |
| Connection type: | flange type |
| Body material: | WCB, CF8, CF8M, etc |
| Packing: | polytetrafluoroethylene PTFE, flexible graphite |
| Spool form: | metal seal, soft seal |
| Valve ball material: | 304, 316, 304L, 316L, etc |
| Valve seat material: | PTFE, RPTFE, PEEK, PPL, 304, 316, etc |
| Model: | Piston actuator |
| Gas supply pressure: | 400 ~ 700kPa |
| Air source interface: | G1/8 ", G1/4 ", G3/8 ", G1/2" |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | single action, double action |
| Leakage: | Metal seal: according to ANSI B16.104 Class IV |
| Non-metal seal: | compliant with ANSI B16.104 Class VI |
Product Categories : Pneumatic Ball Valve
