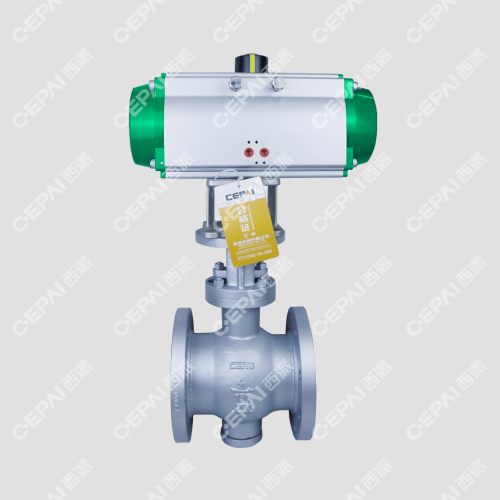

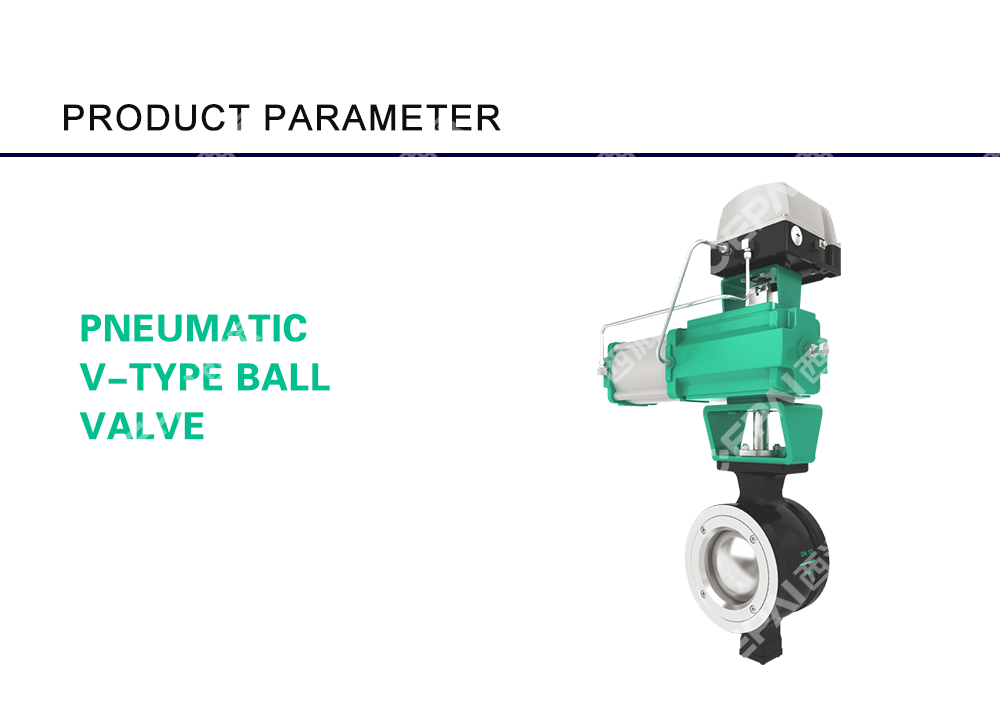

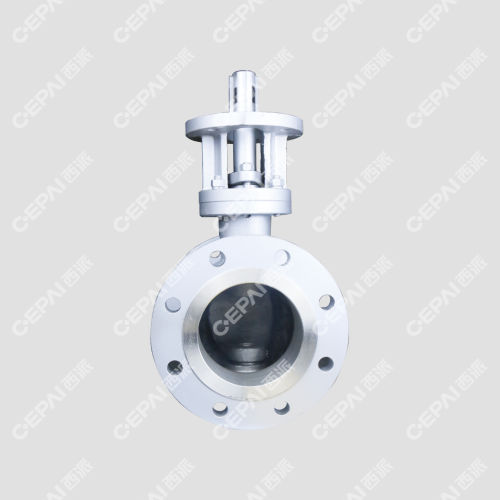

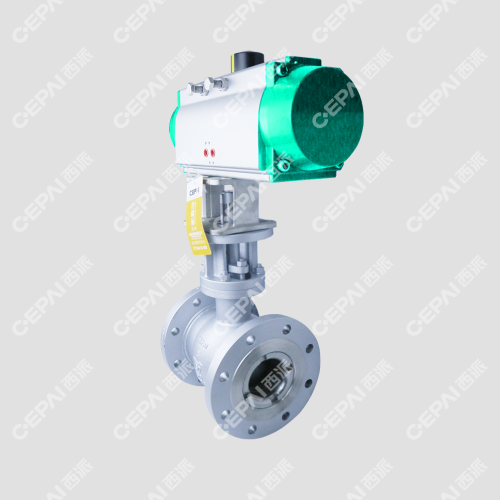

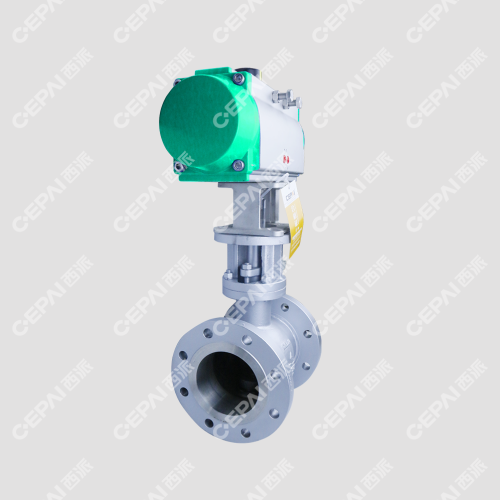

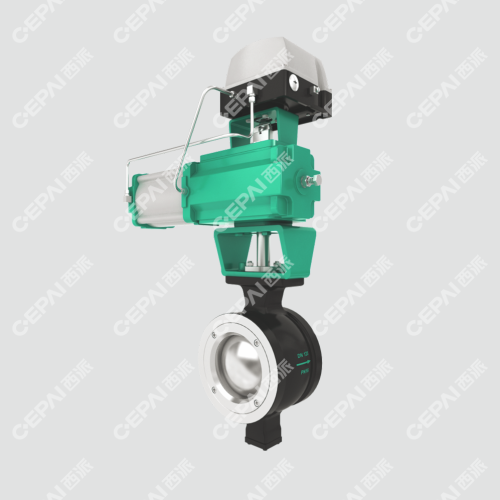

Pneumatic V-type Ball Valve

Get Latest Price

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Land,Air,Express,Others

Port:

shanghai,ningbo,huaian

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Supply Ability & Additional Information

Packaging: BOX

Transportation: Ocean,Land,Air,Express,Others

Port: shanghai,ningbo,huaian

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: BOX

Pneumatic V-Type Ball Valve operating specifications

Pneumatic actuators: Use pneumatic actuators to control the on-off action of ball valves. The actuator should have a suitable torque output capacity to ensure

that the Ball Valve can be switched on and off normally.

Air pressure: The air pressure required for ball valve operation should be within the specified range, usually 0.4-0.6MPa.

Control signal: The on-off action of the ball valve is usually controlled by an electrical signal. The signal can be a voltage signal (such as 4-20mA) or a switching

signal (such as 24V DC). The actuator should be able to receive and respond to this signal.

Stroke: The stroke of the ball valve refers to the rotation Angle of the ball valve from full close to full open. Usually, the ball valve travel is 90 degrees, but there

are other travel options.

Quick switch: The ball valve should have a quick switch function so that it can be quickly opened or closed when needed.

Our company's main products are Gate Valve, Welhead, Ball Valve, Flowmeter,Globe Valve.

VALVE BODY

Ball core form:	full-bore V-shaped
Nominal diameter:	DN15-450mm
Nominal pressure:	PN16, 40, 64; ANSI150, 300, 600
Connection type:	flange type. Clamp type
Valve body material:	WCB, WC6, WC9, LCB, CF8, CF8M, etc.
Filling:	PTFE, flexible graphite

Valve Components

Valve core form:	metal seal, soft seal
Flow characteristics:	equal percentage
Internal materials:	304+PTFE, 316+PTFE, 304, 316, 304L, 316L

Executive Agency

Model:	Piston actuator
Air supply pressure:	400~700kPa
Air source interface:	G1/8″, G1/4″, G3/8″, G1/2″
Ambient temperature:	-30～+70℃
Form of action:	single action, double action

Performance

Leakage: Metal Seal:	Meets ANSI B16.104 Level IV
Non-metallic valve seat:	Meets ANSI B16.104 Level VI
Accessories (configured upon request)	Positioner, filter pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, pneumatic accelerator, locking valve, etc.
