Products
Brand: Cepai
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: shanghai,ningbo,huaian
Payment Type: L/C,D/P,T/T

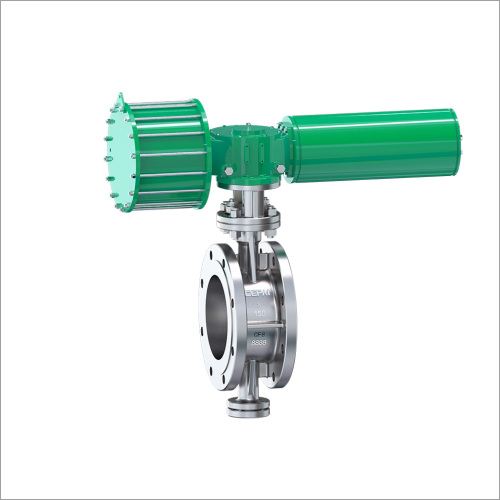

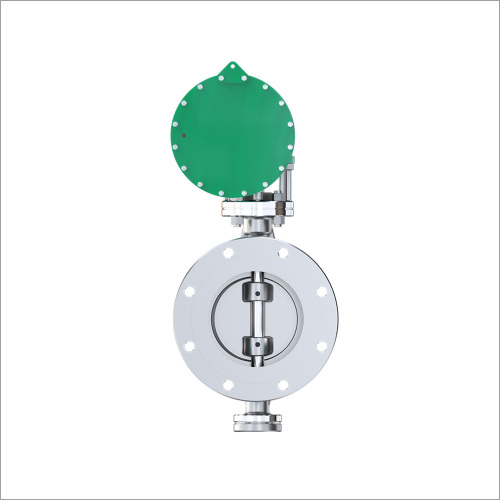

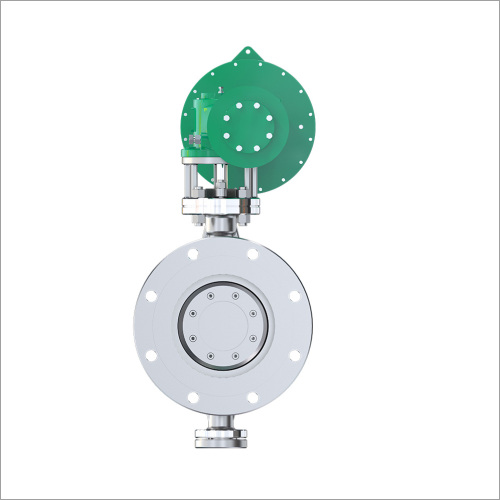

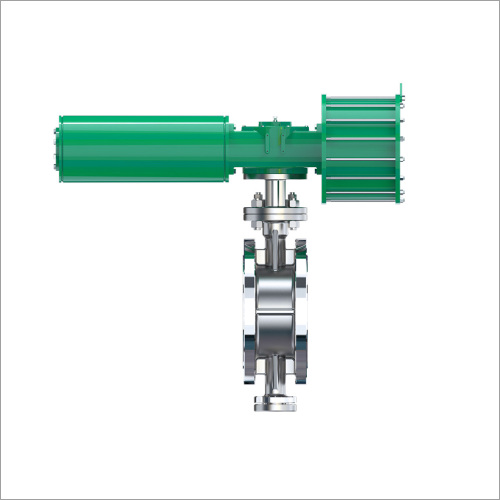

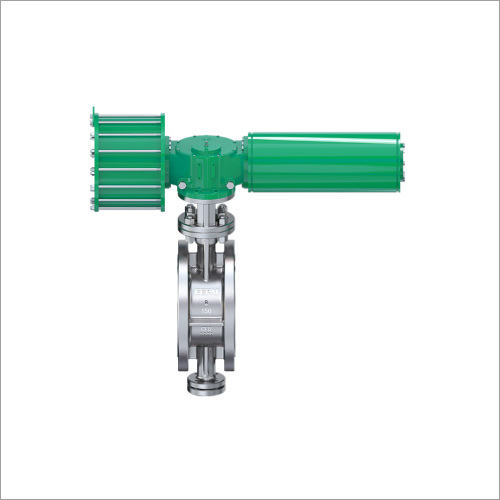

1. Simple structure: The pneumatic Triple Eccentric Butterfly Valve consists of a valve body, a valve seat, a valve plate, a pneumatic actuator and connecting parts. It has a compact structure and is easy to install.
2. Adjustable flow: By adjusting the opening of the pneumatic actuator, precise control of the fluid can be achieved and the flow rate can be adjusted.
3. High sealing performance: The valve seat adopts a three-eccentric structure design, which has a small contact area with the valve plate and good sealing performance, which can effectively prevent leakage.
4. Strong corrosion resistance: The valve body and valve plate are usually made of corrosion-resistant materials and can adapt to the working environment of various corrosive media.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
| Nominal circulation: | DN50-1300mm |
| Nominal pressure: | PN6, 10, 16，40，64, ANSI150~600; |
| Connection mode: | flange type, sandwich type |
| Body material: | WCB, CF8, CF8M, CF3M, etc |
| Packing: | PTFE, flexible graphite |
| Spool form: | three eccentric plate |
| Flow characteristics: | equal percentage, switch |
| Butterfly plate material: | 304, 316, 304L, 316L |
| Model: | Piston actuator |
| Gas supply pressure: | 400 ~ 700kPa |
| Air source interface: | G1/8 ", G1/4 ", G3/8 ", G1/2" |
| Action form: | single action, double action |
| Leakage: Metal seal: | according to ANSI B16.104 Class IV |
| Non-metal seal: | compliant with ANSI B16.104 Class VI |
Product Categories : Pneumatic Butterfly Valve
Home > Products > Pneumatic Butterfly Valve > High Precision Triple Eccentric Butterfly Valve
