Good Quality Pneumatic Fluorine Lined Ball Valve

Get Latest Price

Size:

1/2" 150LB
3/4" 150LB
1" 150LB
1-1/4" 150LB
1/1-2" 150LB
2" 150LB
2-1/2" 150LB
3" 150LB
4" 150LB
5" 150LB
6" 150LB
8" 150LB

Material:

WCB+F46

pressure:

Low Pressure

option:

Please contact customer service for details

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Types Of: Ball Valves

Support Customization: Oem

Power: Pneumatic

Flow Medium: Acid

Structure: Ball

Supply Ability & Additional Information

Packaging: Box

Transportation: Ocean,Land,Air,Express,others

Port: shanghai,ningbo,huaian

Payment Type: L/C,T/T,D/P

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Box

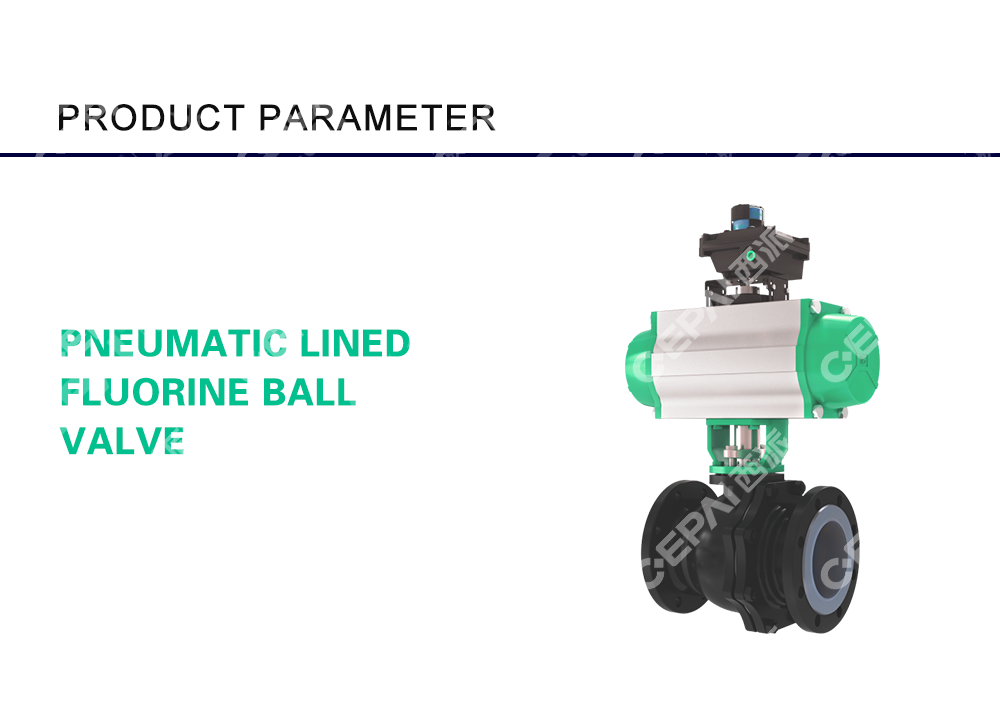

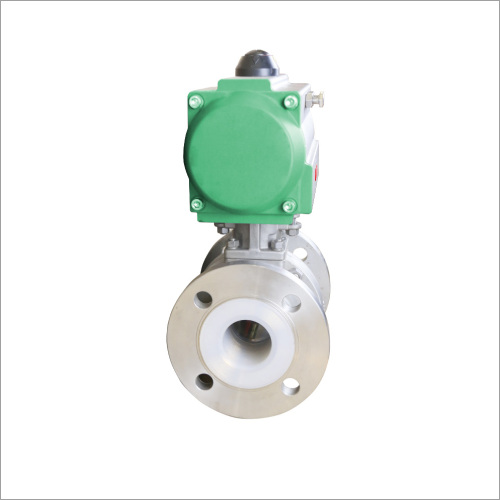

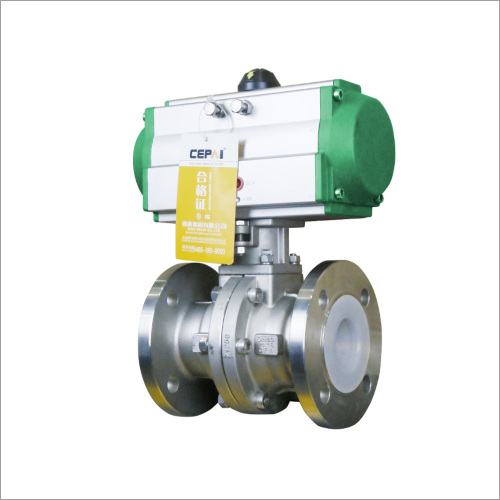

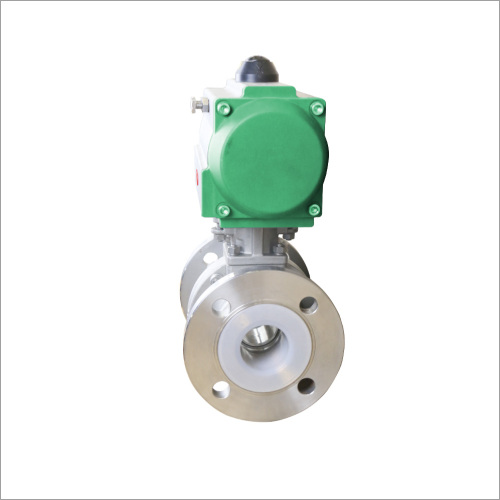

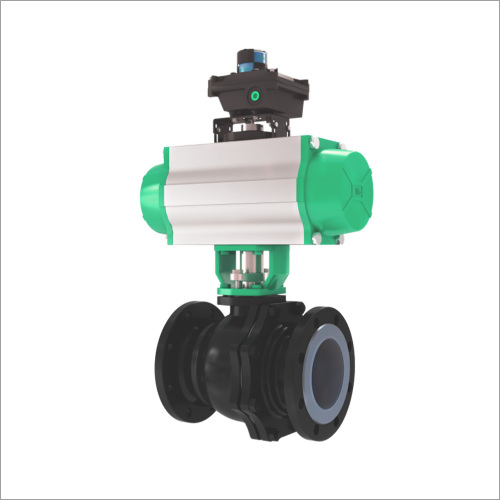

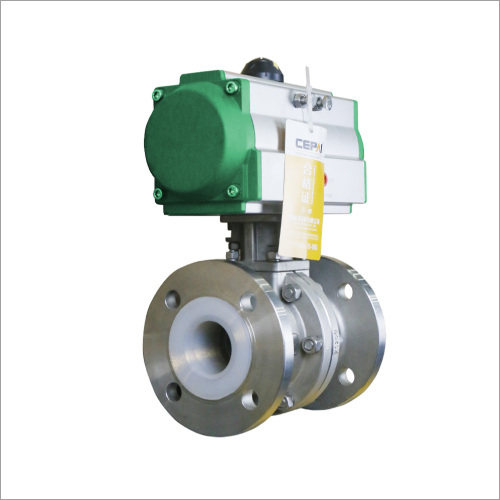

Pneumatic fluorine-lined Ball Valve is a valve controlled by a pneumatic actuator and has the characteristics of a fluorine-lined ball and a fluorine-lined valve seat. It is mainly composed of valve body, valve cover, ball, valve seat, pneumatic actuator and other components.

Features:
1. Fluorine-lined material: The ball and valve seat are made of polytetrafluoroethylene (PTFE) lined with fluorine, which has good corrosion resistance and can adapt to the working environment of various corrosive media.
2. Sealing performance: The fluorine-lined ball valve adopts the contact form between the ball and the valve seat, which has good sealing performance and can achieve zero leakage closure.
3. Control method: It adopts pneumatic actuator control, which has the characteristics of quick response, flexibility and reliability, and can realize remote control and automatic operation.
4. Adjustability: The actuator of the pneumatic fluorine-lined ball valve usually has an adjustment function, which can adjust the valve opening as needed to achieve flow regulation.
5. Scope of application: Applicable to various industrial fields, especially chemical, petroleum, pharmaceutical, food and other industries, and widely used in the control and regulation of liquids and gases.

Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.

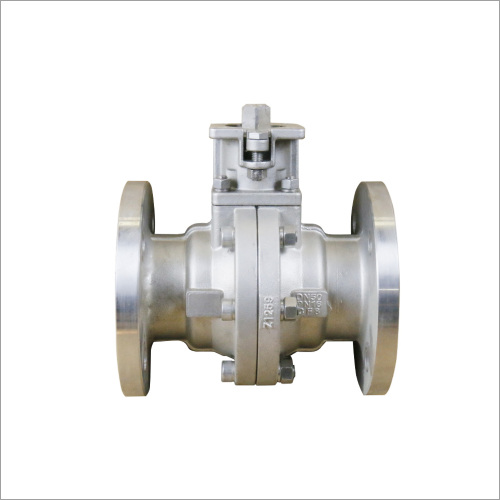

VALVE BODY

Type:	straight ball valve
Nominal diameter:	DN15-400mm
Nominal pressure:	PN16, 25; ANSI 150
Connection type:	Flange type
Gland form:	platen type
Body material:	WCB lined F46, CF8 lined F46, WCB lined PFA, CF8 lined PFA
Packing:	V-type PTFE, flexible graphite

Valve inner assembly

Spool form:	lined with plastic O-shaped ball core
Flow characteristics:	fast open
Interior material:	WCB, CF8, CF8M with F46 or PFA

Executive mechanism

Model:	Piston actuator
Gas supply pressure:	400 ~ 700kPa
Air source interface:	G1/8 ", G1/4 ", G3/8 ", G1/2"
Ambient temperature:	-30 ~ +70℃
Action form:	single action, double action
