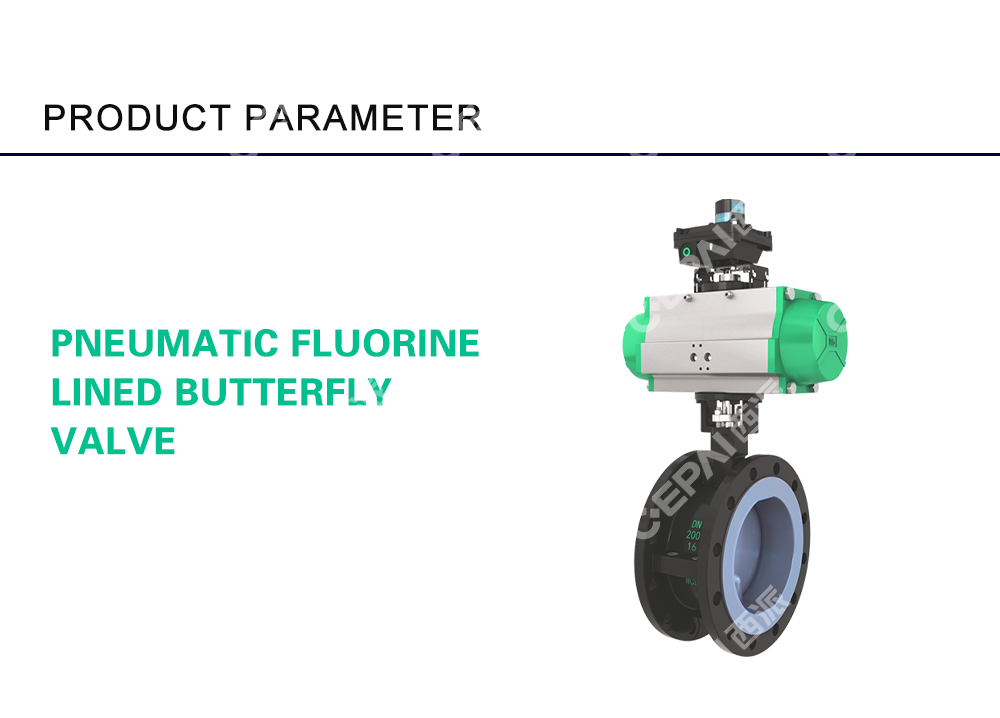

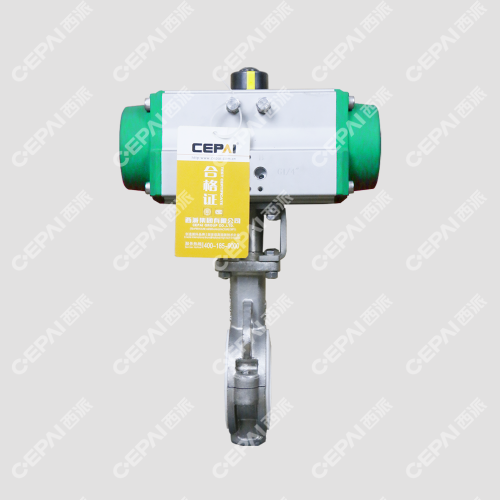

Pneumatic fluorine-Lined Butterfly Valve is a valve controlled by a pneumatic actuator, with a valve body and valve disc lined with fluorine material.
The following are some product details of pneumatic fluorine lined butterfly valves:
1. Material: The valve body and valve disc are usually made of cast iron, carbon steel or stainless steel and lined with fluoroplastic (such as polytetrafluoroethylene) to improve the corrosion resistance of the valve.
2. Structure: The pneumatic fluorine-lined Butterfly Valve adopts a butterfly structure. The valve disc is connected to the pneumatic actuator through the valve stem, and the opening and closing of the valve disc is controlled by rotating the valve stem.
3. Sealing performance: Fluorine-lined material has good sealing performance and can effectively prevent medium leakage. The fluorine-lined material between the valve disc and valve seat can provide a good sealing effect.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Nominal diameter: | DN50-1000mm |
| Nominal pressure: | PN6, 10, 16, 25; ANSI 150LB |
| Flange connection: | sandwich type, flange type |
| Body material: | flange type |
| Gland form: | platen type |
| Body material: | WCB lined F46, CF8 lined F46, WCB lined PFA, CF8 lined PFA |
| Packing: | PTFE |
| Spool form: | center line control plate |
| Flow characteristics: | equal percentage, switch |
| Internal materials: | WCB, CF8, CF8M with F46, PFA |
| Model: | Piston actuator |
| Gas supply pressure: | 400 ~ 700kPa |
| Air source interface: | G1/8 ", G1/4 ", G3/8 ", G1/2" |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | single action, double action |
| Leakage: | meets ANSI B16.104 Class VI |
