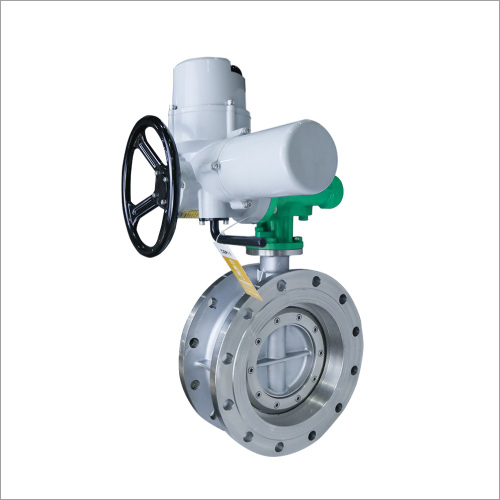

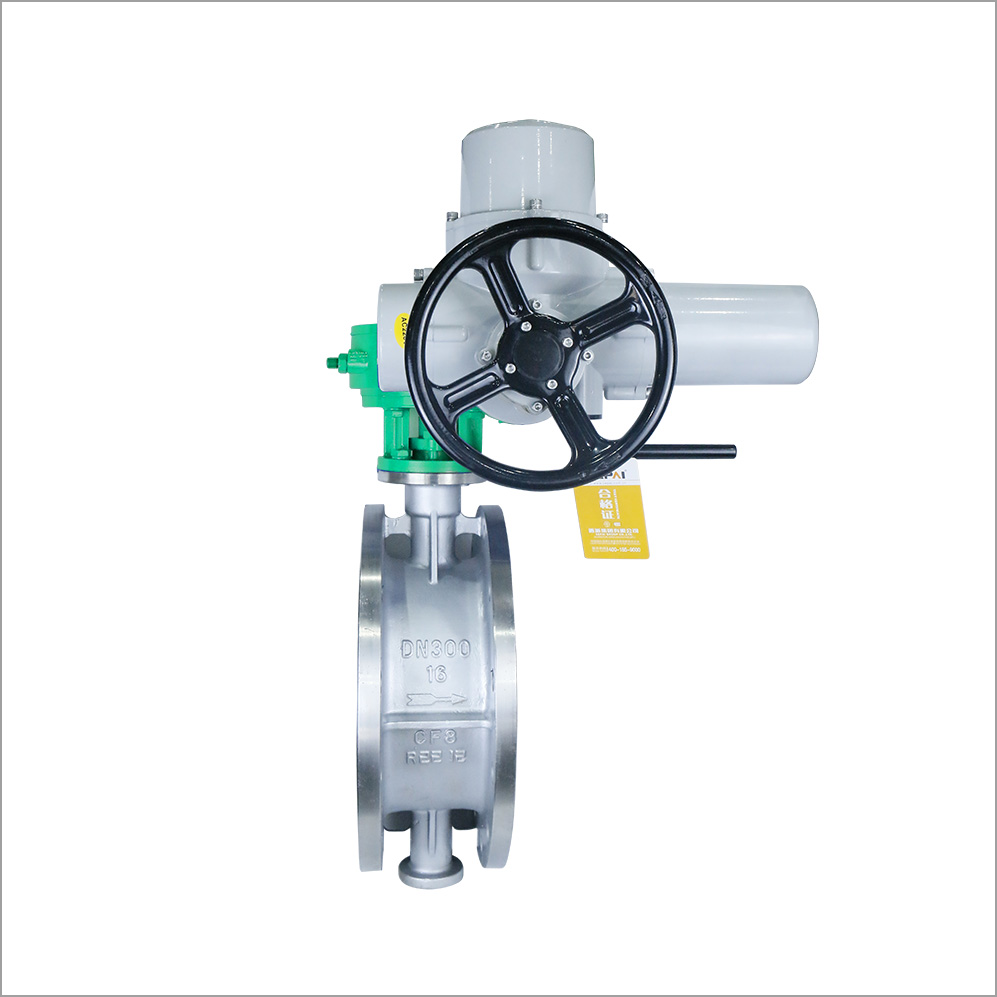

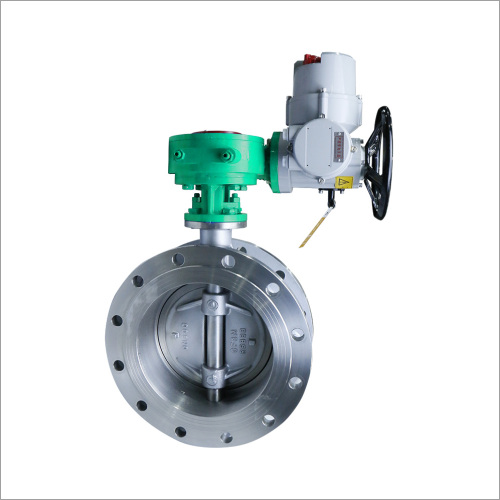

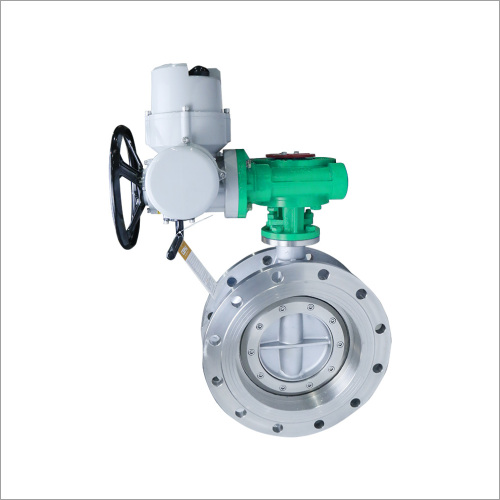

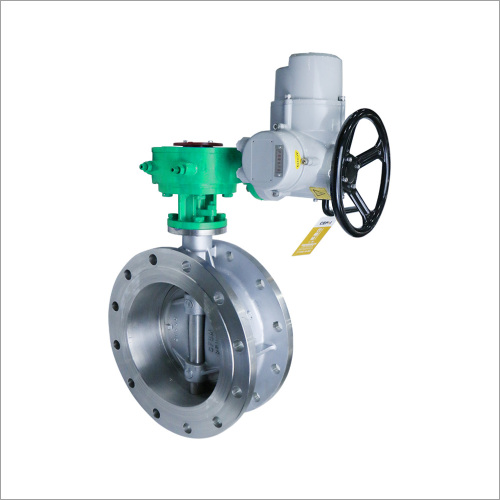

Electromechanical Turbine Three Eccentric Butterfly Valve

Get Latest Price

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Land,Air,Express,Others

Port:

shanghai,ningbo,huaian

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Supply Ability & Additional Information

Packaging: BOX

Transportation: Ocean,Land,Air,Express,Others

Port: shanghai,ningbo,huaian

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: BOX

The working principle of the electric turbine three-Eccentric Butterfly Valve is to rotate the butterfly plate of the valve through the electric actuator, so as to change the flow area of the valve and realize the adjustment of the fluid. It uses a three-eccentric structure design, so that the disc can be quickly removed from the seat when opening and closing, reducing friction and wear, and improving the service life of the valve.

In practical applications, electric turbine three-eccentric butterfly valves are often used in the following scenarios:

Petrochemical industry: used to control and cut off crude oil, natural gas, refining, chemical products, etc.

Power industry: medium control and regulation for thermal power generation, nuclear power plants, etc.

Metallurgical industry: used for fluid regulation and cutting of steel, non-ferrous metals, etc.

The multi-scenario application proves the practicality of the electric three-eccentric Butterfly Valve, which is the first choice for everyone. our company in addition to Electric Butterfly Valve, It also produces Pnenmatic control valve, Electric Control Valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Fluorine Lined Valve, etc.

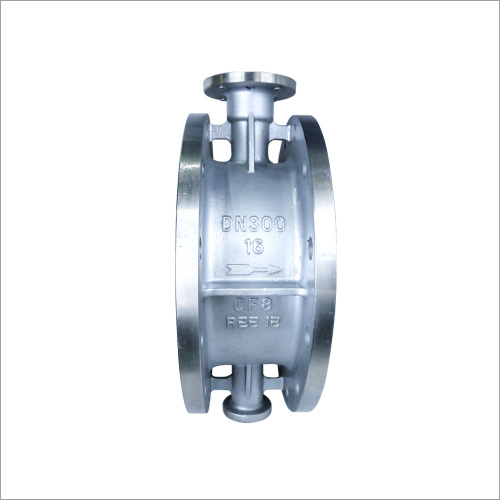

VALVE BODY

Nominal circulation:	DN50-1300mm
Nominal pressure:	PN6, 10, 16，40，64, ANSI150~600;
Connection mode:	flange type, sandwich type
Body material:	WCB, CF8, CF8M, CF3M, etc
Packing:	PTFE, flexible graphite

Valve inner assembly

Spool form:	three eccentric plate
Flow characteristics:	equal percentage, switch
Butterfly plate material:	304, 316, 304L, 316L

Executive mechanism

Model:	Electric actuator
Voltage:	220V, 380V
Ambient temperature:	-30-+70℃
Control signal:	4-20mADC (4-20mA signal feedback can be provided according to customer requirements)
