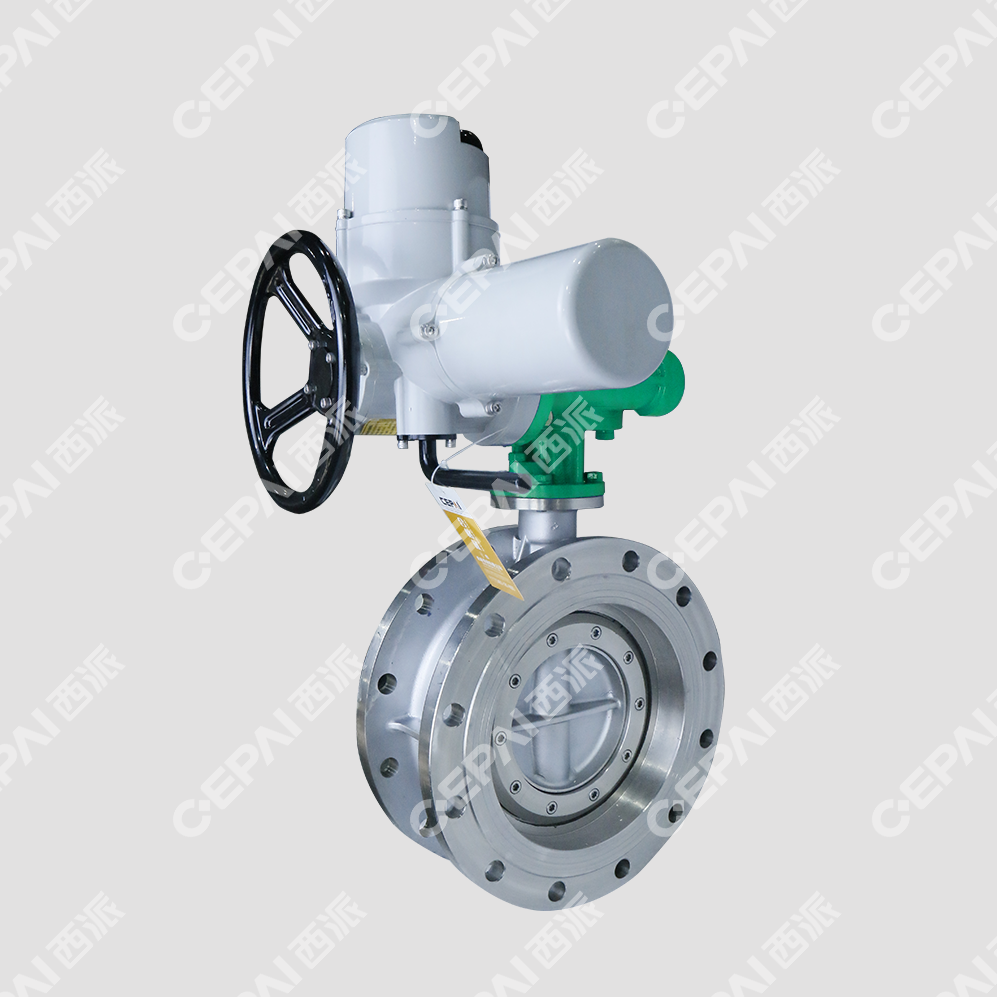

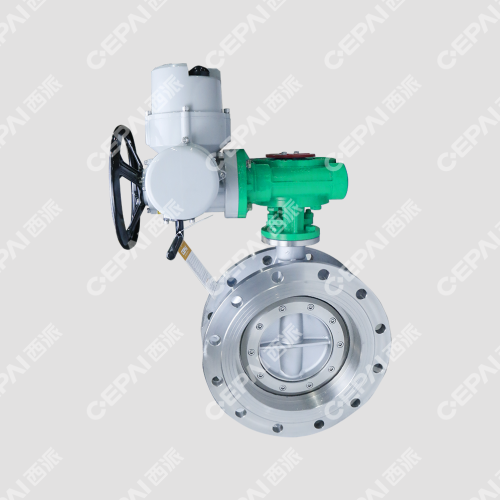

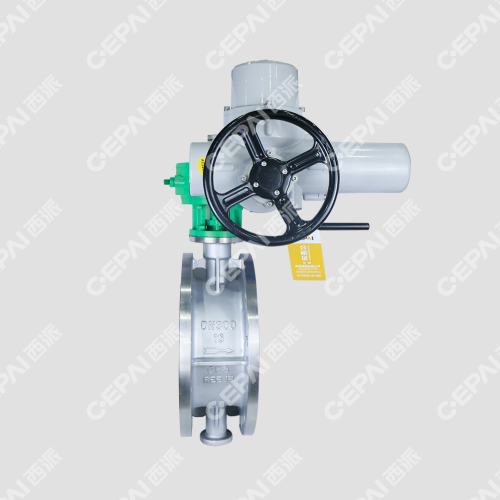

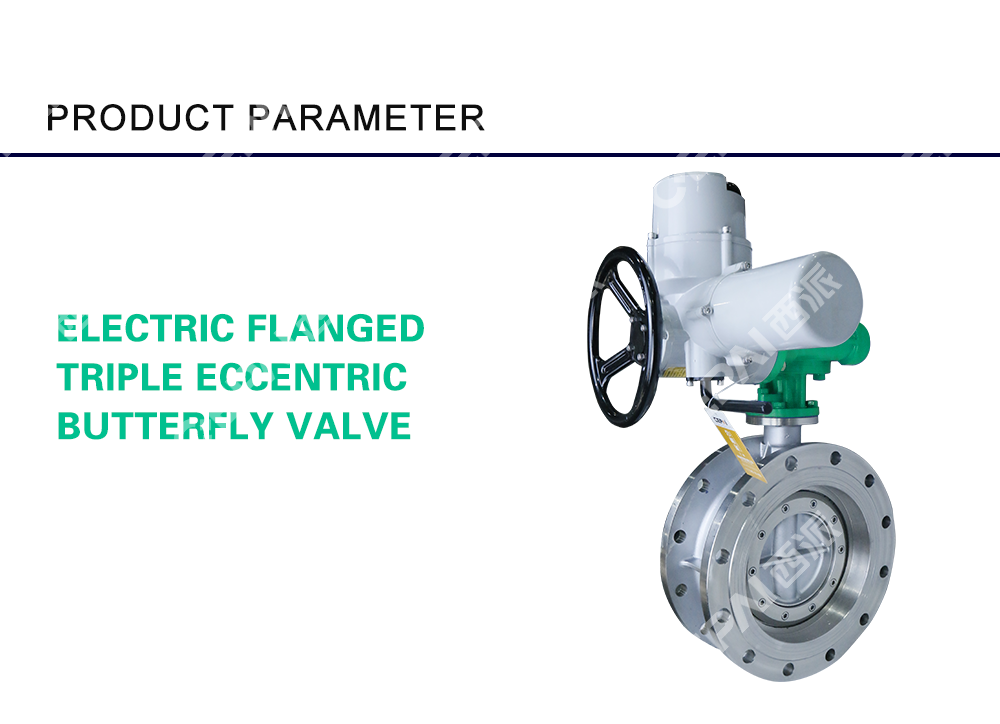

Electric Stainless Steel Waterproof Butterfly Valve

Get Latest Price

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Land,Air,Express,Others

Port:

shanghai,ningbo,huaian

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Supply Ability & Additional Information

Packaging: BOX

Transportation: Ocean,Land,Air,Express,Others

Port: shanghai,ningbo,huaian

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: BOX

According to the selection guide, combined with the specific engineering needs and technical requirements, select the appropriate adjustable electric three-Eccentric Butterfly Valve.

Working environment: Consider the working environment of the valve, including temperature, humidity, corrosion and other factors. Select the appropriate valve material and protective measures according to the working environment.

Maintenance requirements: Consider the maintenance requirements of the valve, including maintenance frequency, maintenance difficulty and maintenance cost. Choose valves that are simple in structure and easy to maintain.

Cost consideration: Determine a reasonable cost range according to the budget, and select valves that meet the cost requirements.

our company in addition to this valve, It also produces Pnenmatic control valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve,

Electric Butterfly Valve, Fluorine Lined Valve, etc. You are welcome to inquire.

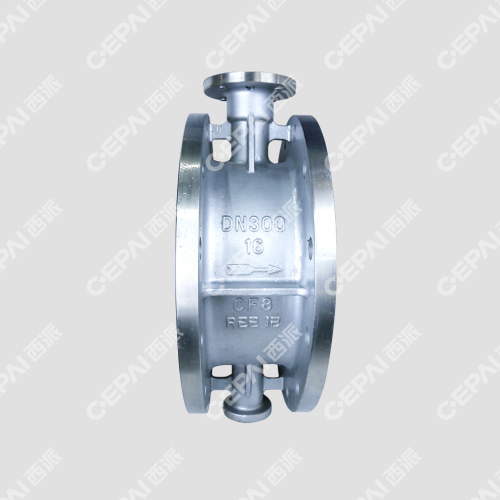

VALVE BODY

Nominal circulation:	DN50-1300mm
Nominal pressure:	PN6, 10, 16，40，64, ANSI150~600;
Connection mode:	flange type, sandwich type
Body material:	WCB, CF8, CF8M, CF3M, etc
Packing:	PTFE, flexible graphite

Valve inner assembly

Spool form:	three eccentric plate
Flow characteristics:	equal percentage, switch
Butterfly plate material:	304, 316, 304L, 316L

Executive mechanism

Model:	three eccentric plate
Voltage:	equal percentage, switch
Ambient temperature:	-30-+70℃
Control signal:	4-20mADC (4-20mA signal feedback can be provided according to customer requirements)
