Products
Brand: Cepai
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Manual, Electric
Flow Medium: Gas, Water
Structure: Control
Packaging: Box
Transportation: Ocean,Land,Air,Express,others
Port: Shanghai,Ningbo,Huaian
Payment Type: L/C,T/T,D/P
1．Test Standard: API 598.
2．Test Medium:Water or gas.
. Main Technology/Construction Features1．The valve body and flange are designed for the whole forging structure.
2．The sealing surfaces of the valve disc and valve seat are welded with STL alloy, which has strong resistance to medium erosion.
3．The dynamic loading of the valve disc with guiding structure and the spring ensures that the valve can achieve reliable sealing under a relatively small pressure difference.
4． The valve body and bonnet adopt the design of sealing with spiral gaskets or metal gasket rings, which can meet the requirements of various special working conditions with low leakage.

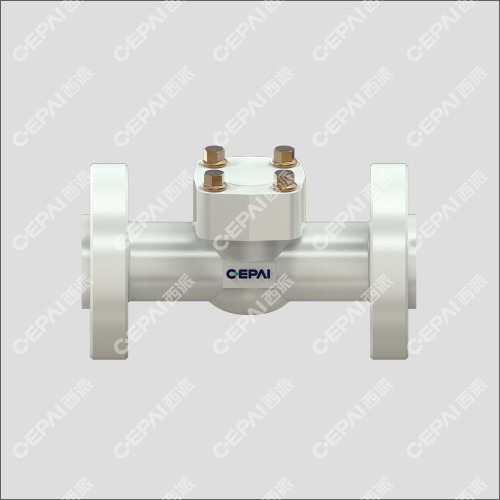

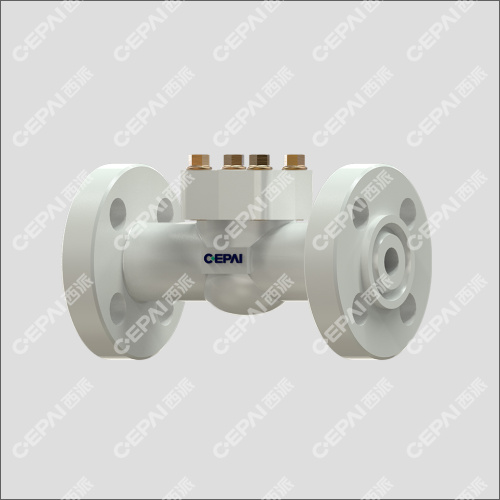

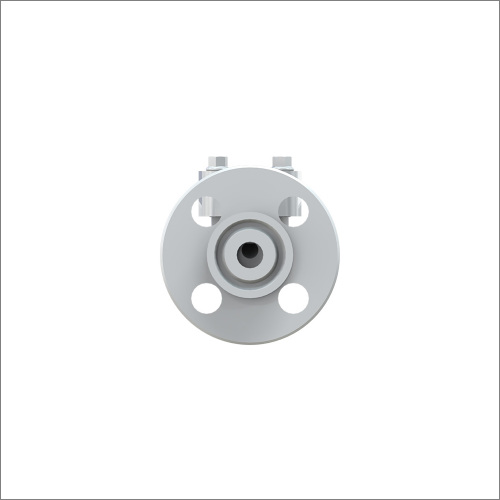

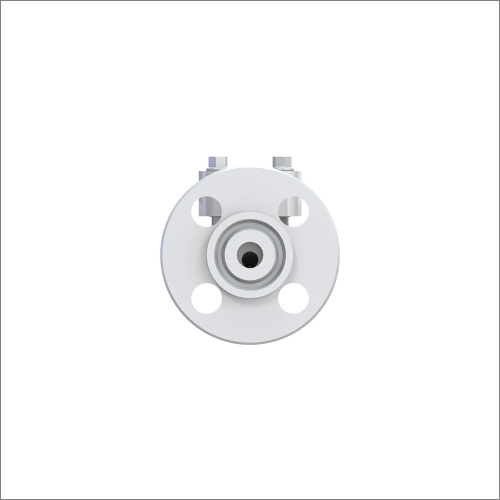

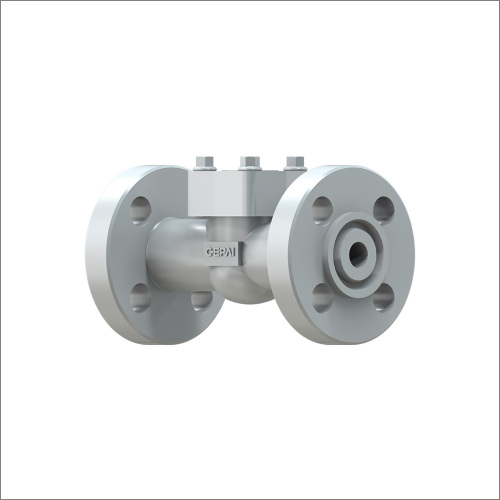

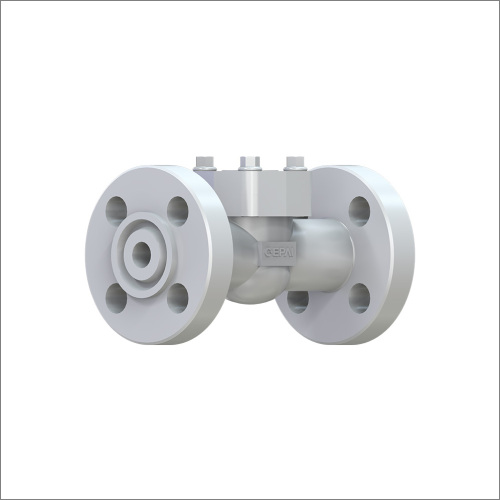

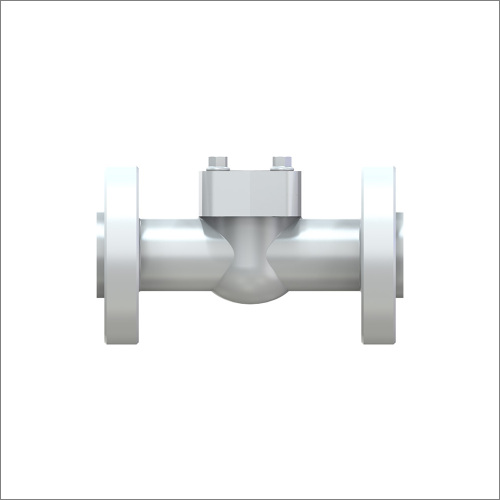

| Production Name | Casting Lift Check Valve |
| Design Standard | API 602、ISO 15761 |
| Rated Pressure | 150LB、300LB、600LB、900LB、1500LB、2500LB |
| Nominal Size | NPS1/2”~NPS4”（DN15~DN100） |
| End Connection Type | Flange; BW, etc. |
| Operating Mode | Handwheel, Gear box, Electric,etc. |
| Sealing Material | Flexible Graphite, Spiral Wound Gasket |
Common Valve body Material | A105、F316、LF2、A182 F51、A182 F53、B564 N06625,etc |
Product Categories : API 6D
