Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Low Temperature
Power: Pneumatic
Flow Medium: Gas, Water, Oil
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

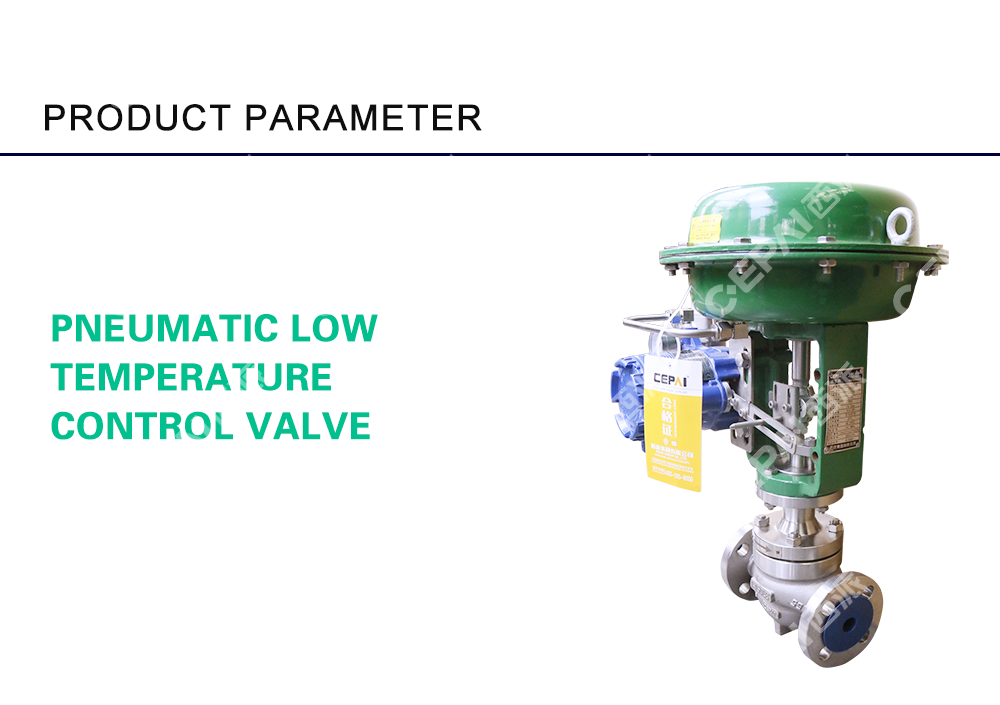

our company in addition to pneumatic low-temperature valve, It also produces Electric Control Valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve, Fluorine Lined Valve, etc. Look forward to your consultation.
VALVE BODY
| Type | straight cage type Ball Valve |
| Nominal diameter | DN15-400mm |
| Nominal pressure | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | Flange type |
| Body material: | WCB, CF8, CF8M, etc |
| Valve cover form: | -40~-196℃ extended type |
| Gland form: | bolt pressing type |
| Packing: | flexible graphite, PTFE Valve inner assembly |
| Spool type: | pressure balance spool |
| Adjustment characteristics: | equal percentage, linear |
| Internal materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc |
| Model: | Film type |
| Film material: | ethylene propylene rubber sandwiched nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Gas supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | gas open (reaction), gas close (positive action) |
| Note: | |
| ①This type of large diameter or high pressure difference regulating valve can also be equipped with straight stroke piston actuators. | |
| ②If the ambient temperature is lower than -30°C, please contact the western technical personnel. |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI |
| Accessories (as required): | Position, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, gas control valve, speed regulator, holding valve, etc. |
Product Categories : Pneumatic Control Valve
