Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: High Temperature
Power: Pneumatic
Flow Medium: Gas, Water, Oil
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

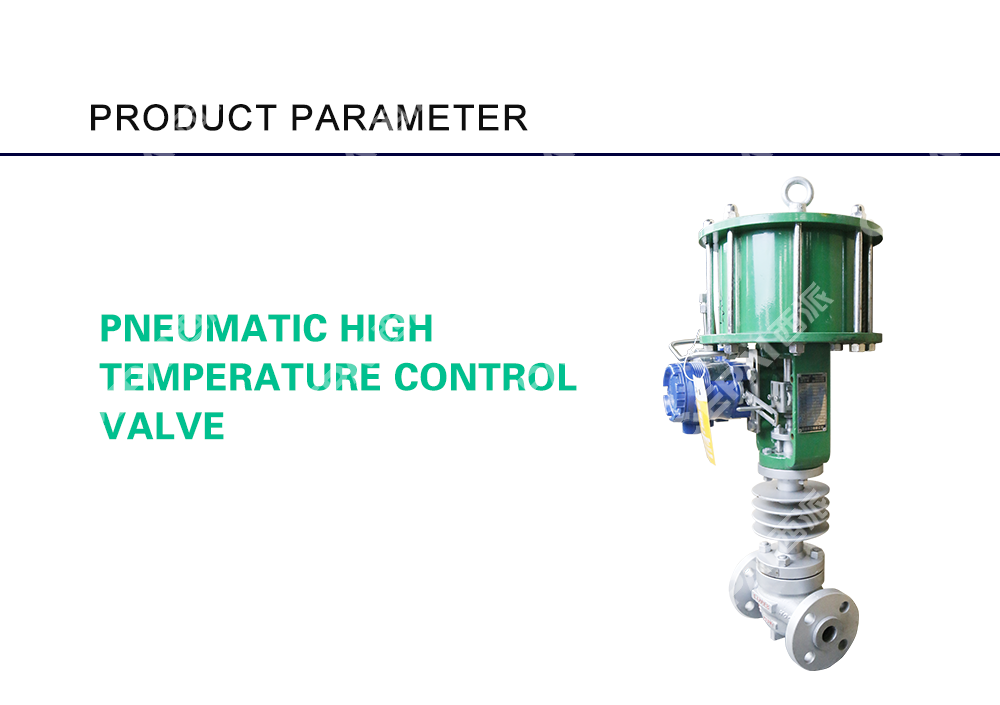

Pneumatic high-temperature regulating valve is a valve used to control the flow of high-temperature media. It uses a pneumatic actuator as the power source to regulate the opening and closing of the valve by controlling the pressure of the air source.
This valve has the following features and advantages:
1. High-temperature adaptability: Pneumatic high-temperature Control Valves can withstand the effects of high-temperature media and have good high-temperature adaptability.
2. Precise control: This valve uses a pneumatic actuator, which can achieve precise flow control and ensure stable flow of the medium.
3. Quick response: The pneumatic high-temperature regulating valve has the characteristics of quick response and can quickly adjust the opening and closing of the valve to meet the need for quick response to flow changes.
Pneumatic high-temperature regulating valves are widely used in petroleum, chemical, metallurgy, electric power and other industries to control the flow of high-temperature media and realize automated control of the process.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
Valve Body
| Type: | straight-through cage Ball Valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material: | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form: | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler: | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
Performance
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
