Electric Switch Lined Fluorine Ball Valve

Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Land,Air,Express,Others
Port:
shanghai,ningbo,huaian
Share:
  • Product Description
Overview
Product Attributes

BrandCepai

Supply Ability & Additional Information

PackagingBOX

TransportationOcean,Land,Air,Express,Others

Portshanghai,ningbo,huaian

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
BOX
Electric switch lined  selection guide

Size and connection method: Select the appropriate valve size and connection method according to the size and connection method of the pipeline. Common connection methods include flange connection, thread connection, welding connection, etc.

Brand and quality: Choose well-known brands of electric automatic control lined fluorine ball valves to ensure reliable product quality and after-sales service.

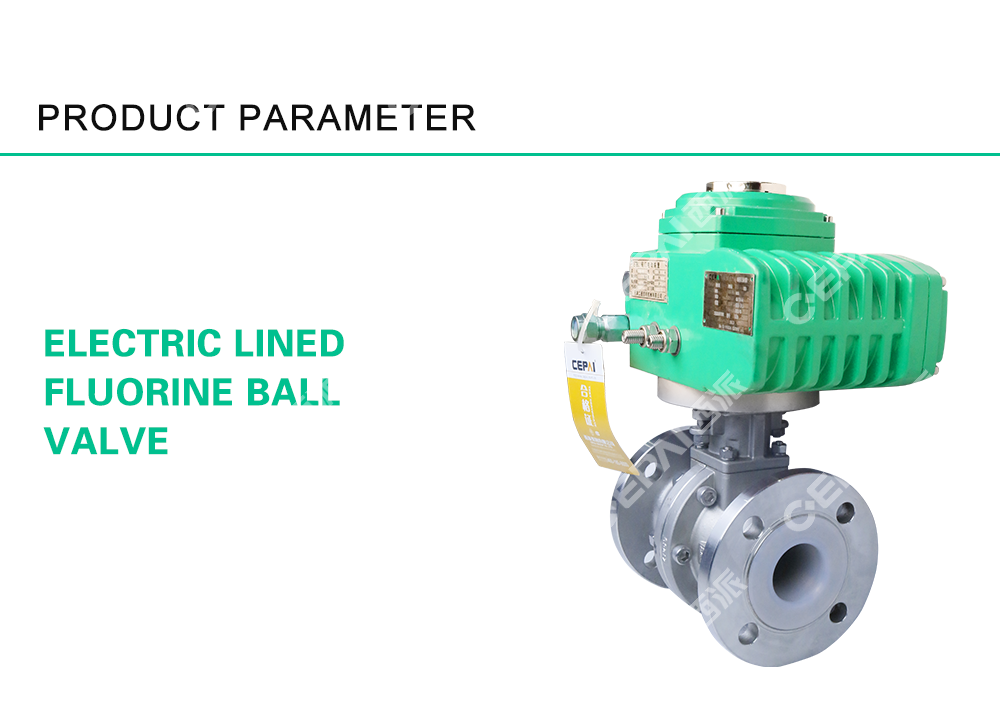

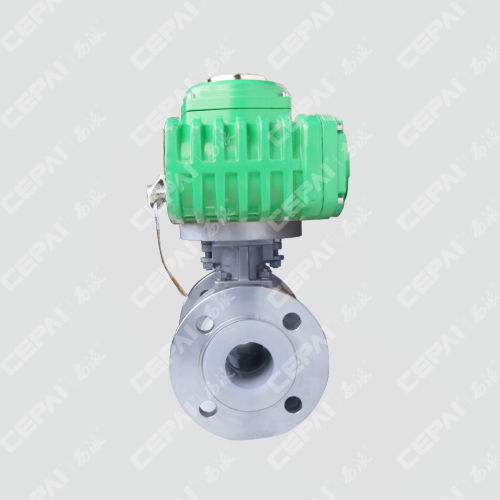

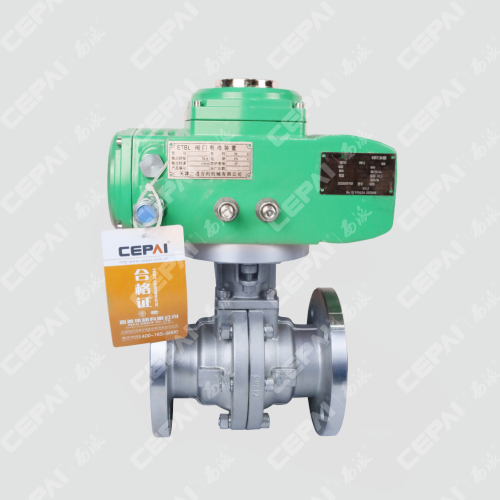

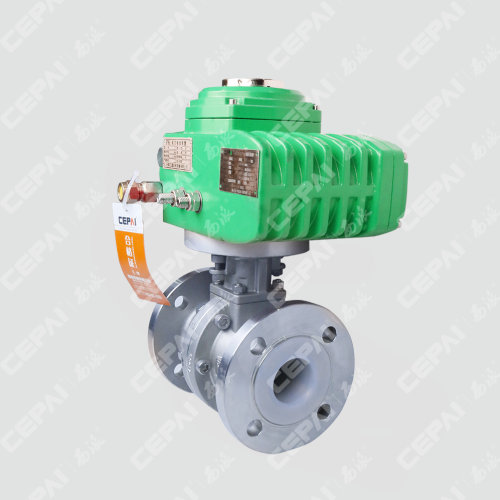

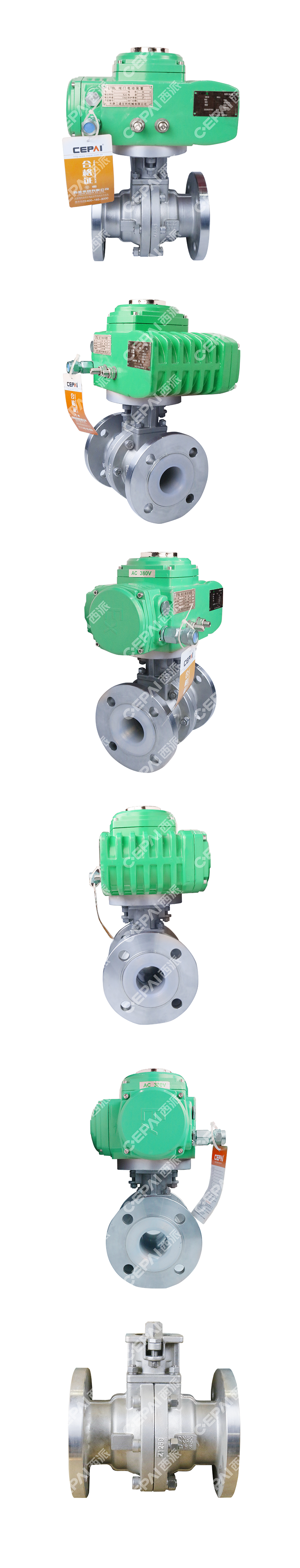

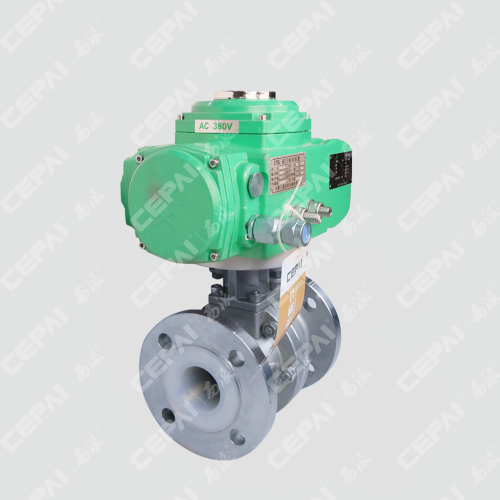

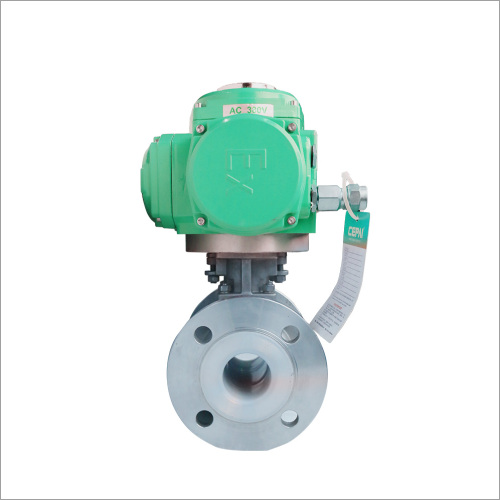

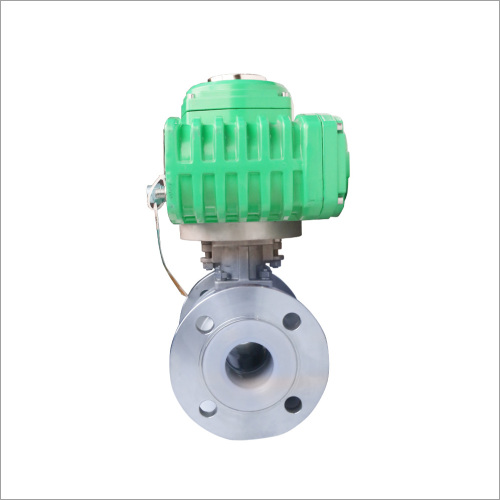

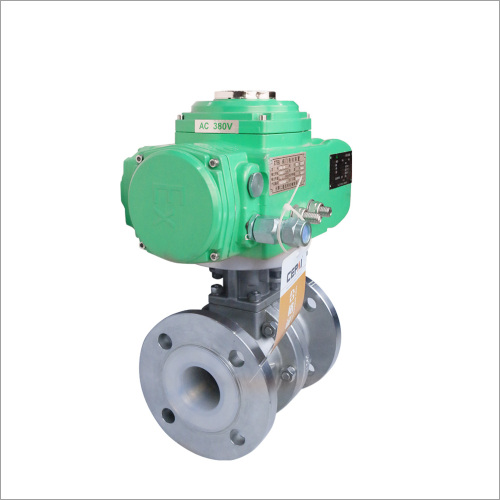

Electric switch Fluorine Lined Ball Valve is a Ball Valve that controls the valve switch through an electric device. Its valve body is lined with fluorine plastic material,

which has the characteristics of corrosion resistance, high temperature resistance and wear resistance.



This is one of the main products of our company, our company also has Electric Control Valve, Electric Ball Valve, Electric Butterfly Valve and pneumatic valve

series, can meet your requirements.

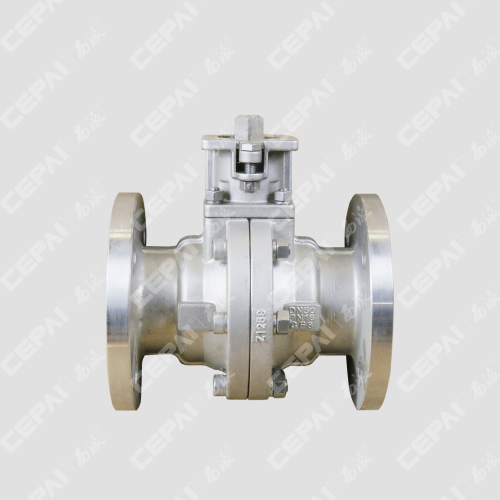

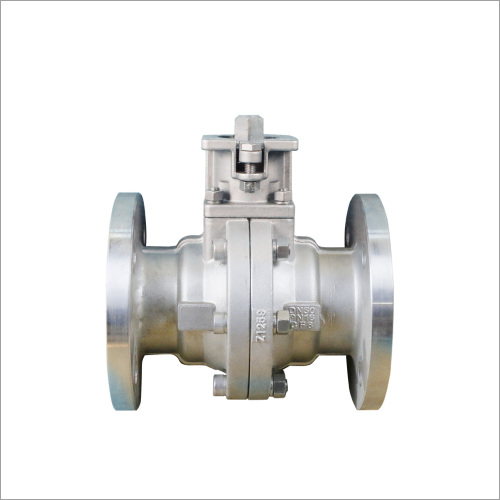

VALVE BODY
Type straight ball valve
Nominal diameter DN15-DN400mm
Nominal pressure PN16,25;ANSI150
Connection type Flange type
Gland form Platen type
Body material WCB lined f46,CF8 lined F46,WCB lined PFA,CF8 lined PFA
Packing V-type PTFE,flexible graphite

VALVE INNER ASSEMBLY

Spool form Lined with plastic O-shaped ball core
Flow characteristice fast open
Internal materials WCB,CF8,CF8M with F46 or PFA

EXECUTIVE MECHANISM

Model Electric actuator
Voltage 220V,380V
Ambient temperature -30~+70℃
Control signal 4-20mADC(4-20mA signal feedback can be provided according to customer requirements)

PROPERTY

Leakage meets ANSI B16.104 Class Vl



Product Categories : Fluorine Lined Valve
