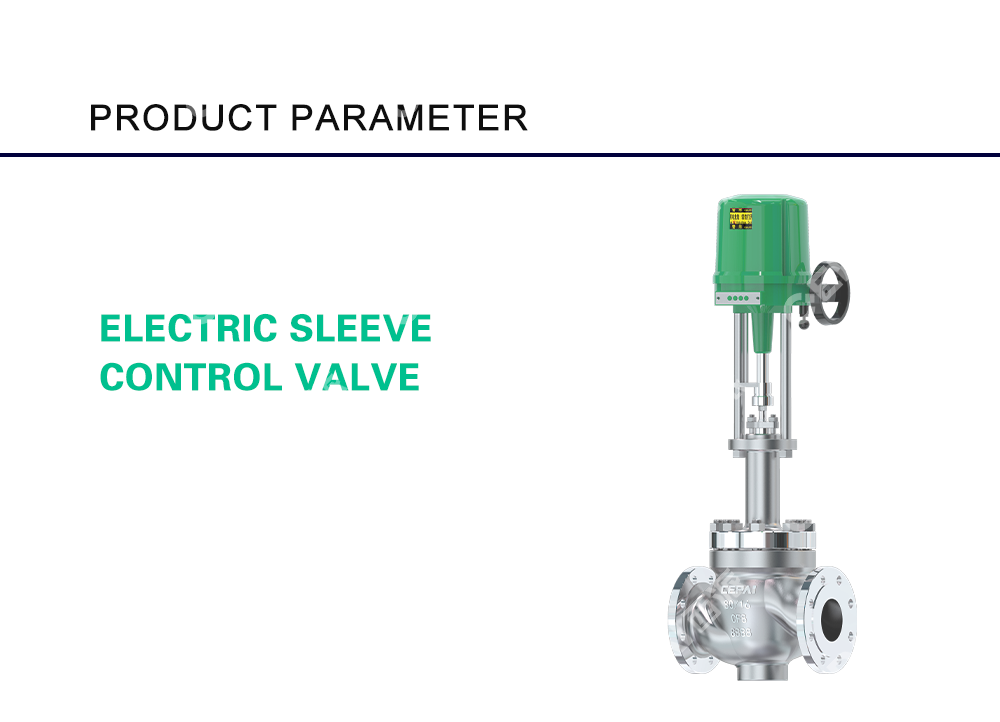

High Productivity Electric Sleeve Proportional Control Valve

$1200.00 - 750.00 / Piece/Pieces

1 Piece/Pieces (Min. Order)

Size:

1/2" 150LB
3/4" 150LB
1" 150LB
1 1/2" 150LB
2" 150LB
3" 150LB
4" 150LB
5" 150LB
6" 150LB
8" 150LB

Material:

304 stainless steel

pressure:

Low Pressure

option:

Please contact customer service for details

$470.00

0 Piece，Product Price: US $ 0

Lead Time：/ days
Shipping time:/ days

Payment:

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Cepai

Types Of: Globe Valves

Support Customization: Oem

Place Of Origin: China

Medium Temperature: Low Temperature

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 1000cm*500cm*500cm

Single gross weight:: 50kg

Package Type:: BOX

Lead Time :

Quantity（Piece/Pieces）	1 ~ 10	>10
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

High efficiency Electric Sleeve Control Valve is a valve used to control the fluid, it uses the motor as a driving device, through the rotation of the sleeve to control the fluid on and off and flow.

When choosing a high-efficiency electric Sleeve Control Valve model, the following factors need to be considered:

Fluid medium: First of all, it is necessary to determine the fluid medium to be controlled, including the properties of the fluid, temperature, pressure and other parameters. Different fluid media have different requirements on the material and sealing performance of the valve, so it is necessary to choose the valve model suitable for the fluid medium.

Control requirements: According to the actual control needs to determine the control mode of the valve, including switch control, adjustment control, etc. Different control methods have different requirements for the speed and accuracy of the valve, so it is necessary to select the valve model with the corresponding control function.

Our company's main products are Gate Valve, Welhead, Ball Valve, Flowmeter,Globe Valve.

VALVE BODY

Type	Straight-through double-seat ball valve
Nominal diameter	DN15-DN400mm
Nominal pressure	PN16, 40, 64, ANSI150, 300, 600;
Connection form:	Flange type
Valve body material:	WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc.
Valve cover form:	Standard type (P): -17-+230℃
Gland type:	Bolt pressing type
Filling:	PTFE V-shaped packing, PTFE asbestos and flexible graphite

Valve Components

Valve core form:	pressure balanced valve core
Adjustment characteristics:	equal percentage, linear
Internal parts materials:	304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc.

Executive Agency

(1) Pneumatic actuator
Model:	film type
Diaphragm material:	ethylene-propylene rubber sandwiched with nylon
Spring range:	20-100KPa, 40-200KPa, 80-240KPa
Air supply pressure:	140KPa, 160KPa, 280KPa, 400KPa
Air source connector:	Rc1/4, Rc3/8
Ambient temperature:	-30 ~ +70℃
Mode of action:	air-opening type (reaction), air-closing type (direct action)
Remarks:
	① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator.
	② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel.
(2) Electric actuator
Model:	Electric actuator
Voltage:	220V, 380V
Ambient temperature:	-30-+70℃
Control signal:	4-20mADC (4-20mA signal feedback can be provided according to customer requirements)

Performance

Leakage amount:	Metal valve seat: Complies with ANSI B16.104 Level IV
Non-metallic valve seat:	conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve, speed increaser, position keeping valve, etc.
