Brand: Cepai
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.
Our company produces pneumatic, electric series of various valves, Examples include Pneumatic Control Valve, Electric Control Valve, Pneumatic Ball Valve, Electric Ball Valve, and Pneumatic Butterfly Valve, Fluorine Lined Valve, etc

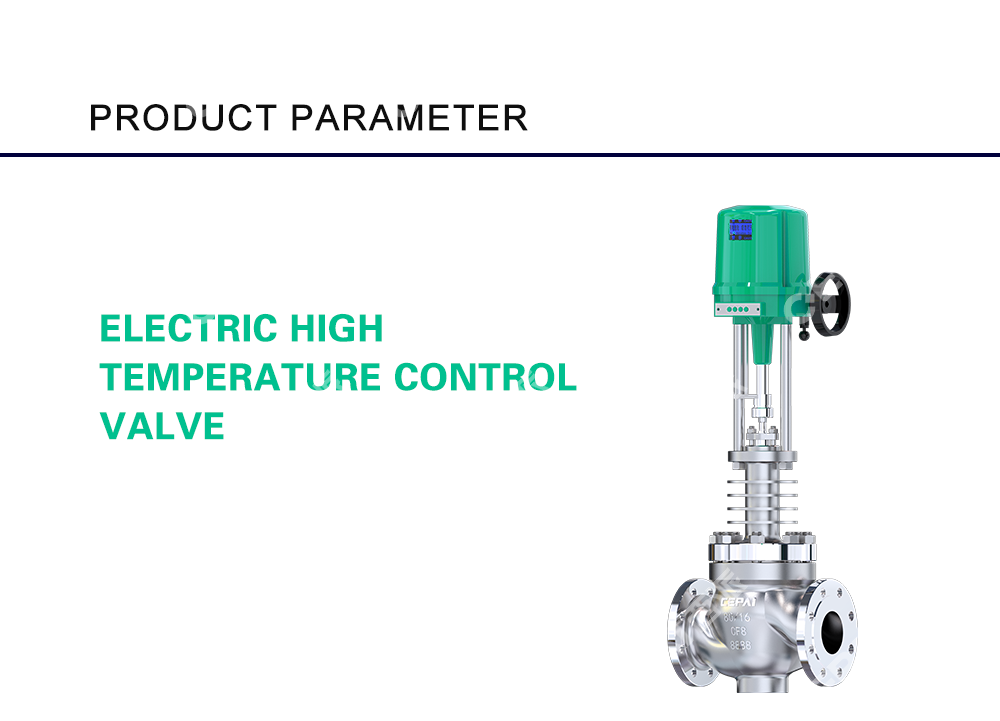

This product is an electric high temperature flow control valve.
The high temperature electric flow regulating valve is a regulating valve used to control the flow of high temperature medium. It uses an electric actuator as a driving device, and adjusts the flow rate of the valve by controlling the opening of the actuator. The regulating valve is usually suitable for medium with operating temperature higher than 200℃, such as steam, hot oil, etc.
Our company has many other products, if you are interested can click on the home page to see, welcome your consultation.
Valve Body
| Type: | straight-through cage Ball Valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material: | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form: | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler: | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| (1) Pneumatic actuator | |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. | |
| (2) Electric actuator | |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
Performance
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
Product Categories : Electric Control Valve
