Brand: Cepai
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

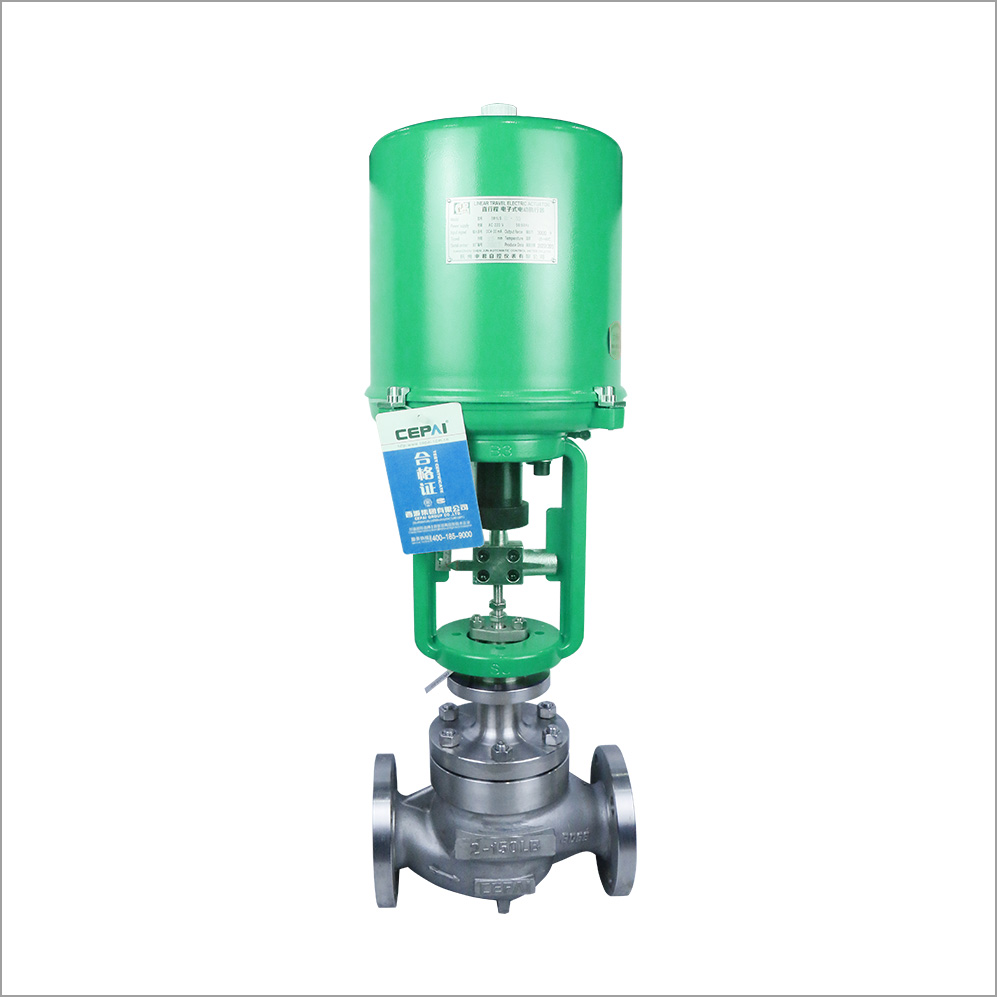

Electric bellows regulating valve is a valve that realizes flow regulation by controlling the movement of the bellows through an electric actuator.
It uses the bellows as the elastic element of the valve body, and adjusts the flow of the fluid through the telescopic movement of the bellows.
The following is a detailed description of some common electric bellows regulating valve models:
ZJHP series electric bellows regulating valve: This series of valves uses advanced electric actuators to control the expansion and expansion movement of bellows,
with high adjustment accuracy, fast reaction speed, good reliability and so on. Suitable for liquid, gas and other fluid medium regulation control.
ZJHC series electric bellows regulating valve: This series of valves adopts a specially designed bellows structure, so that the valve has a large adjustment range and
flow characteristics, suitable for high temperature, high pressure, corrosive media and other special conditions.
Electric regulating Valve is one of the main products, in addition to electric regulating Valve, we also have Pneumatic Control Valve, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Fluorine Lined Valve, Interested welcome to consult.
| Type | straight-through cage Ball Valve |
| Nominal diameter | DN15-400mm |
| Nominal pressure | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Bonnet type: Standard type (P): | -17 - +230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
Valve Components
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear, quick opening |
| Internal materials: | 304, 304 cladding STL, 316, 316 cladding STL, 316L, etc. |
| Bellows material: | 304L, 316L, Harbin C alloy, etc. |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI |
Product Categories : Electric Control Valve
