Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric
Flow Medium: Water, Oil, Gas
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.

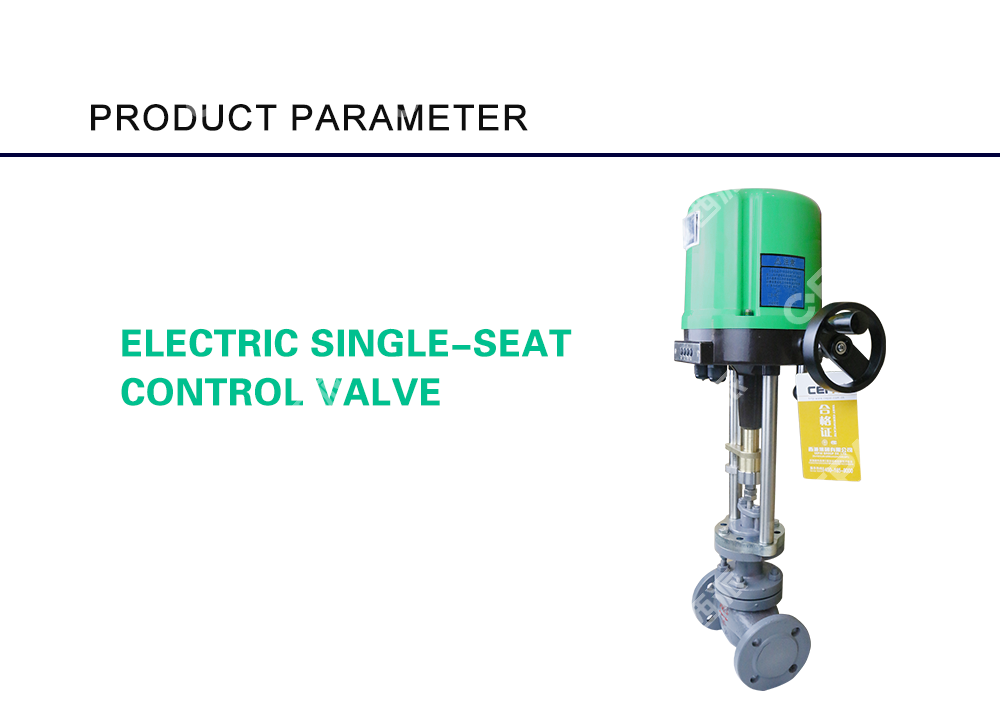

Electric single-seat Control Valves have the characteristics of precise control, fast response, high reliability, automatic control, multiple control modes and easy maintenance. They are widely used in fluid control systems in petrochemical, electric power, metallurgy, pharmaceutical and other industries.
Features：
1. Automated control: The electric single-seat regulating valve can be linked with the control system to achieve automated control and improve production efficiency and work safety.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | straight single seat Ball Valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Spool form: | upper guide single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear, fast opening |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, 17-4PH, etc |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B16.104 Class VI |
