Brand: Cepai
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric
Flow Medium: Gas, Water, Oil
Structure: Control
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
If you finish the payment today, your order will ship out within the delivery date.
Product Description:

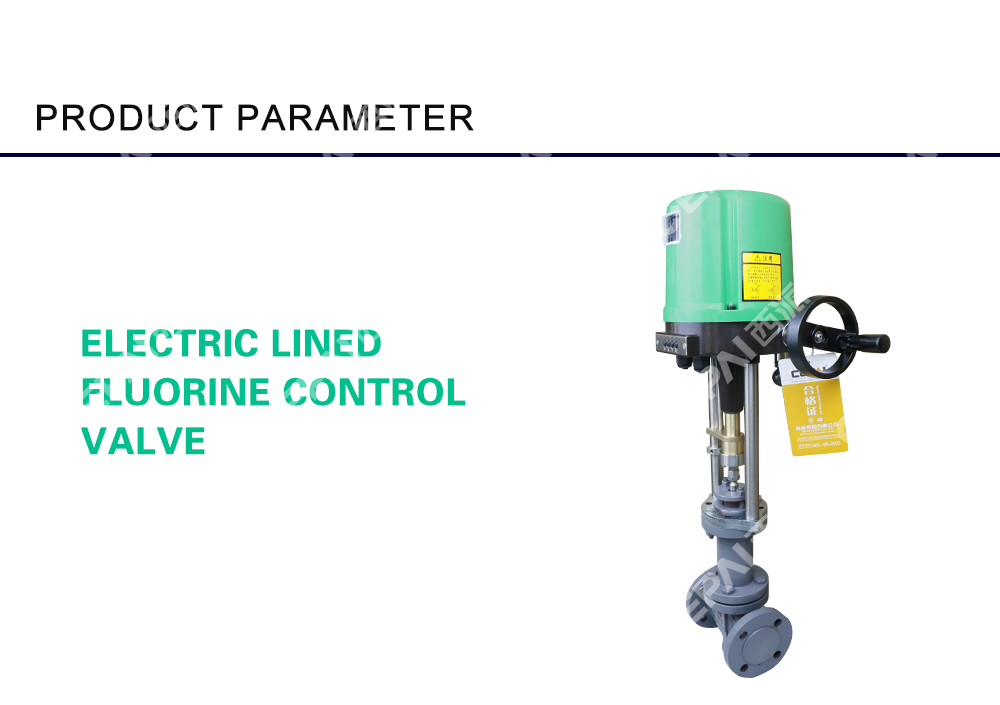

Type 5640 fluorine-lined control valve is a top-guided single-seat control valve. The parts of the control valve that are in contact with the medium are all made of
high-pressure injection molding technology and are lined with corrosion-resistant and aging-resistant polyperfluoroethylene (referred to as F46) or perfluoroalkane.
Oxygen-based resin (PFA for short), the filler part is double sealed with polytetrafluoroethylene bellows and filler, so it has extremely strong corrosion resistance. It
has the advantages of strong corrosion resistance, long service life, high adjustment accuracy, safety, reliability and easy maintenance. It is widely used in the automatic
process control of strong corrosive media such as acids and alkalis, as well as toxic and volatile gases and liquid media in chemical,petroleum,metallurgy,medicine,electric power and other industries.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | straight single seat Ball Valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection type: | Flange type |
| Body material: | WCB lined F46, 304 lined F46, WCB lined PFA, 304 lined PFA |
| Packing: | V-type PTFE packing |
| Spool form: | single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear |
| Internal materials: | WCB lined F46, CF8 lined F46, WC |
Executive mechanism
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage: | Meet ANSI B16.104 Class VI |
Product Categories : Fluorine Lined Valve
