Brand: Cepai
Packaging: BOX
Transportation: Ocean,Land,Air,Express,Others
Port: shanghai,ningbo,huaian

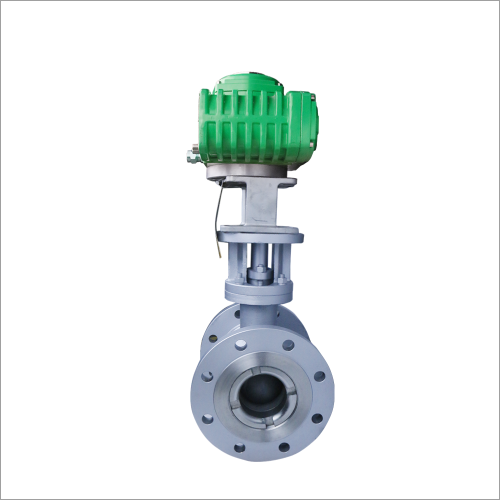

It has many excellent features:
Fast response: The electric actuator can quickly respond to the control signal to achieve fast switching operation and improve work efficiency.
Precise control: The V-shaped ball design makes the electric V-shaped ball valve have better fluid control ability, which can accurately adjust the flow and pressure
of the medium.
Corrosion resistance: Electric V-type ball valves are usually made of corrosion-resistant materials, which can adapt to the working environment of various corrosive media.
High reliability: The electric actuator adopts advanced control technology, has stable and reliable performance, and can work stably for a long time.
Our company in addition to pneumatic Electric Ball Valve, It also produces Pnenmatic control valve, Electric Control Valve, Pneumatic Ball Valve, and Pneumatic Butterfly Valve, Electric Butterfly Valve, Fluorine Lined Valve, etc.

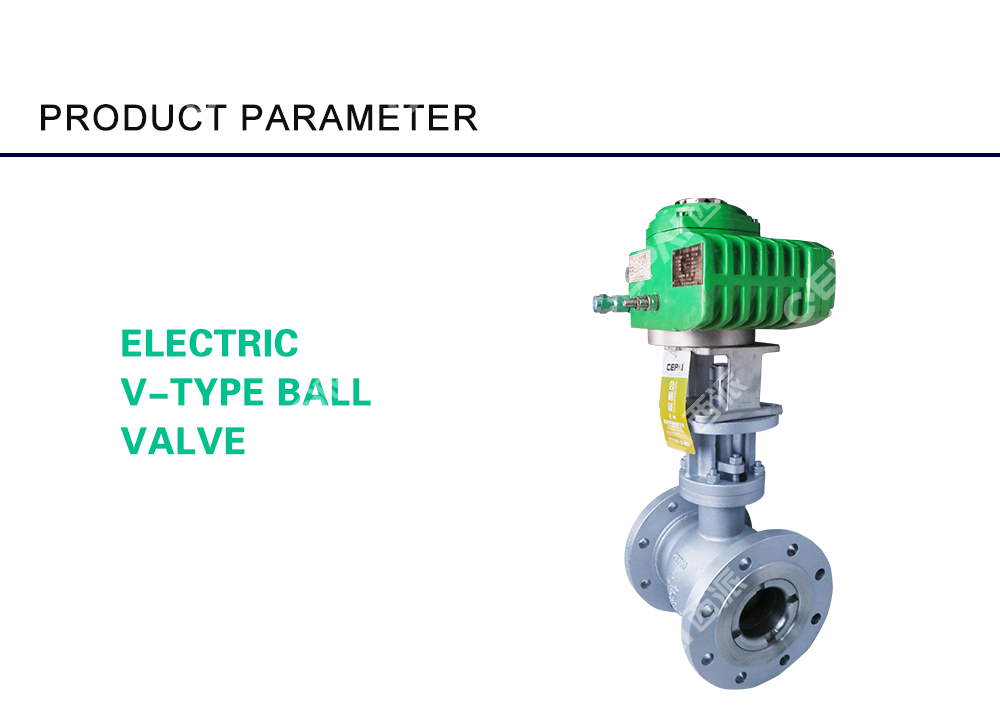

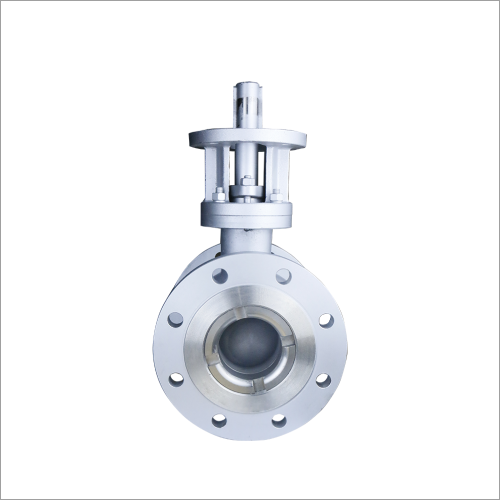

| Ball core form: | full-bore V-shaped |
| Nominal diameter: | DN15-450mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection type: | flange type. Clamp type |
| Valve body material: | WCB, WC6, WC9, LCB, CF8, CF8M, etc. |
| Filling: | PTFE, flexible graphite |
| Valve core form: | metal seal, soft seal |
| Flow characteristics: | equal percentage |
| Internal materials: | 304+PTFE, 316+PTFE, 304, 316, 304L, 316L |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
| Leakage: Metal Seal: | Meets ANSI B16.104 Level IV |
| Non-metallic valve seat: | Meets ANSI B16.104 Level VI |
| Accessories (configured upon request) | Positioner, filter pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, pneumatic accelerator, locking valve, etc. |
